ABB 2CPX062527R9999 Interior Fitting System - DIN 7500/912
Part Number: 2CPX062527R9999
Quick Summary
ABB 2CPX062527R9999 is a thread-forming hex socket head cap screw used in interior fitting systems for electrical enclosures. Designers often struggle with fasteners that loosen under vibration or fail in corrosive environments, leading to downtime and maintenance costs. This product brings robust DIN-threading, steel construction, and galvanic zinc plating to the table, along with EU RoHS and REACH declarations, CE conformity, and WEEE considerations that reassure compliance teams. With a precise M6 x 20 mm size and hole compatibility of 5.5 mm, it streamlines panel assembly and reduces inventory fragmentation. By aligning with standard enclosure hardware, it enables faster sourcing and predictable performance across supplier bases.
Product Information
Extended Description

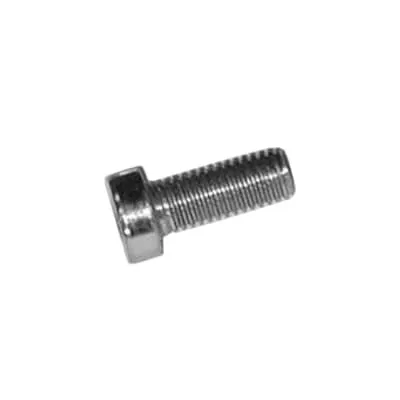

2CPX062527R9999 ABB: Hexagon socket head cap screw, thread-forming, DIN 7500/912, for hole diameter 5.5 mm, M6 x 20 mm
Enclosure Type
Interior fitting system
Head Type
Cheese head
Thread Type
Metric
Surface Finishing
Galvanic/electrolytic zinc plated
Material
Steel
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
6 mm
Product Net Height
6 mm
Product Net Depth / Length
20 mm
Product Net Weight
0.022 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.023 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC003861 - Bolt
ETIM 9
EC003861 - Bolt
Object Classification Code
U
Feature to Benefit to Application: The thread-forming design in a metric M6 x 20 mm screw creates secure, vibration-resistant joints without the need for nuts, reducing assembly time and part count in interior fittings. This translates to measurable lower maintenance and faster line changeovers during panel upgrades. The 5.5 mm hole compatibility supports consistent hole tolerances across standard enclosures, aiding procurement and field service efficiency in control panels and distribution boards. The cheese head offers a flush surface, minimizing snag risk in crowded panel interiors and improving aesthetics in consumer-facing industrial equipment. Galvanic/electrolytic zinc plating provides corrosion resistance in humid environments, extending service life and lowering replacement costs in harsh manufacturing locales. Material is steel with a robust finish, boosting reliability in high-vibration applications while remaining compatible with common panel hardware and DIN standards, simplifying stocking and installation. RoHS and REACH compliance reduces regulatory risk and helps maintenance teams document conformance for audits, while compact packaging (pack 1 piece, 0.023 kg gross) supports lean inventory. In short, standardization with this screw lowers total cost of ownership through faster sourcing, reduced downtime, and longer service intervals for enclosure assemblies.
Get a Quick Quote for a ABB 2CPX062527R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX062527R9999?
Enquire Now
FAQs
Install this M6 x 20 mm thread-forming screw into 5.5 mm holes on interior fitting systems. The cheese head sits flush to minimize snag risk, and the metric thread aligns with standard DIN hardware. Use appropriate torque per your enclosure spec to avoid over-tightening while maintaining vibration resistance.
Key specs include 6x6x20 mm overall dimensions, M6 x 20 mm screw size, 5.5 mm hole diameter compatibility, steel material with galvanic zinc plating, cheese head, and thread-forming action. It is RoHS and REACH compliant with CE conformity and WEEE status indicating regulatory alignment.
Yes. The thread-forming capability coupled with the corrosion-resistant galvanic zinc plating enhances retention under vibration and in humid environments. Combined with pass-through DIN compatibility and robust steel construction, it supports reliable performance in control panels and distribution boards exposed to routine vibration.
The product carries RoHS information and status, RoHS date, REACH declaration and date, and a CE declaration of conformity. WEEE categorization indicates the product’s disposal responsibilities. These certifications help you meet regulatory requirements and simplify supplier qualification and audits in regulated markets.
Standardization on a single M6 x 20 mm, 5.5 mm hole-fit fastener reduces SKU proliferation, speeds sourcing, and lowers inventory costs. The corrosion-resistant finish improves lifecycle reliability, reducing maintenance and replacement cycles. Overall, installation efficiency and regulatory compliance translate to lower total cost of ownership for panel assemblies.
