2CPX062553R9999
Part Number: 2CPX062553R9999
Product Information
Extended Description

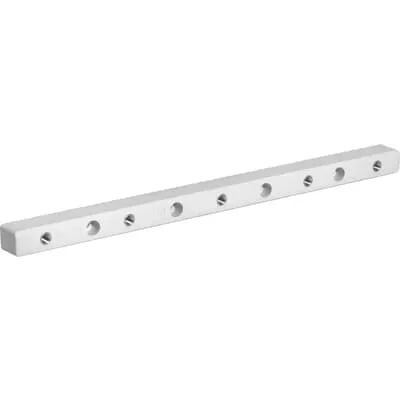

2CPX062553R9999 ABB: for a rated current of 1450 A, Busbar holder, 3-pole, Busbar center distance: 100 mm, packaging unit 10 piece
Rated Current (In)
1450 A
Number of Poles
3P
Enclosure Type
Busbar holder
Material
Plastic
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Busbar Holders
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
6b40df83-46e5-46f0-8938-7c52620b8dda Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
430 mm
Product Net Height
24 mm
Product Net Depth / Length
26 mm
Product Net Weight
3.08 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.203 kg
Declaration of Conformity - CE
EU Declaration of Conformity Busbar Holders
Instructions and Manuals
Mounting instruction ZX521/ZX522
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001166 - Busbar support
ETIM 9
EC001166 - Busbar support
eClass
V11.0 : 27400607
Object Classification Code
U
