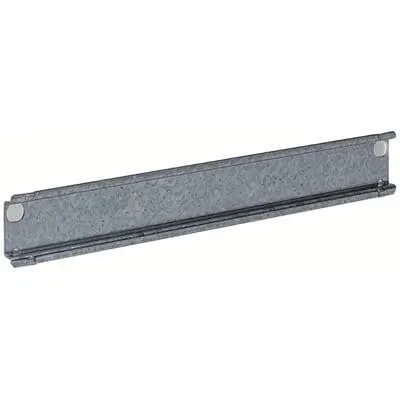

ABB 2CPX062554R9999 Mounting Rail - RoHS & REACH
Part Number: 2CPX062554R9999
Quick Summary
ABB 2CPX062554R9999 Mounting Rail is a DIN rail mounting component designed for panel installations. For engineers, aligning and securing components in tight frames can slow projects and create vibration risks. This product supports CE certification, RoHS compliance, and REACH declarations, ensuring regulatory alignment across panel builds. Manufactured from Sendzimir galvanized steel with a 35 x 7.5 mm profile, it delivers stiffness and corrosion resistance in demanding environments. Designed for ABB panel-system ecosystems, its ETIM and eClass classifications ensure smooth sourcing and interoperability in distribution panels and automation racks.
Product Information
Extended Description
2CPX062554R9999 ABB: Top-hat rail 35 x 7.5 mm, field width 1, length 244 mm, for installation on the mounting frame
Model Number
DIN rail (top hat rail) 35/7.5 mm
Enclosure Type
Mounting rail
Shape
None
Surface Finishing
Sendzimir galvanized
Material
Steel
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
240 mm
Product Net Height
35 mm
Product Net Depth / Length
7.5 mm
Product Net Weight
2.59 kg
Thickness
1 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.694 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001285 - Mounting rail
ETIM 9
EC001285 - Mounting rail
eClass
V11.0 : 27400602
Object Classification Code
U
Feature: 35 x 7.5 mm top-hat DIN rail and 244 mm length enable a standardized mounting platform across ABB and third‑party enclosures. Business impact: reduces installation time and misalignment, leading to faster panel assembly and fewer reworks. Application: ideal for control cabinets, distribution frames, and automation racks in machinery and process equipment. Feature: Made from Sendzimir galvanized steel, the rail delivers superior corrosion resistance and stiffness. Business impact: longer service life in harsh environments reduces maintenance cycles and replacement costs. Application: suitable for factory floors, power distribution rooms, and outdoor panels where metal corrosion is a consideration. Feature: RoHS information, REACH declaration, and CE conformity included in the documentation. Business impact: simplifies compliance audits, supplier qualification, and component traceability. Application: panel builds compliant with EU environmental and safety regulations, including ABB CombiLine N systems. Feature: ETIM 8 EC001285 and ETIM 9 EC001285 classifications plus eClass V11.0 27400602. Business impact: improves catalog searchability, procurement accuracy, and ERP integration. Application: ensures consistent part naming in purchasing systems and MRO catalogs. Feature: Product net width 240 mm, height 35 mm, depth 7.5 mm, thickness 1 mm, weight 2.59 kg, with a 244 mm profile. Business impact: provides a robust mounting base with predictable frame loading and safer device siting. Application: ideal for mid‑size cabinets where a stable DIN rail is required. Feature: WEEE Category indicates product is not in WEEE scope; compatibility with ABB CombiLine N panels and mounting frames. Business impact: reduces disposal complexity and streamlines lifecycle planning. Application: automation installations requiring modular, standards-based rails.
Get a Quick Quote for a ABB 2CPX062554R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX062554R9999?
Enquire Now
FAQs
This mounting rail uses a 35 x 7.5 mm top-hat profile and a 244 mm length, matching standard DIN rails used in most control cabinets. It mounts to common frame structures with compatible clips and supports ABB and many third‑party enclosures. Always verify frame tolerance and clip compatibility to ensure secure, vibration-free mounting.
Key specifications include a 35 x 7.5 mm top-hat DIN rail profile, 244 mm length, 240 mm net width, 35 mm height, 7.5 mm depth, 1 mm thickness, and a net weight of 2.59 kg. Material is steel with Sendzimir galvanization. Certifications include CE, RoHS, and REACH; ETIM 8/9 and eClass classifications apply.
Yes. The rail is compatible with ABB panel-system ecosystems, including Distribution Panel System CombiLine N. It carries the EU Declaration of Conformity and RoHS/REACH compliance, which supports integration into CombiLine N assemblies and helps streamline regulatory documentation during panel builds.
The product carries CE conformity, RoHS compliance under EU Directive 2011/65/EU with Amendment 2015/863, and a REACH declaration. WEEE categorization indicates the rail is not within WEEE scope. ETIM 8/9 EC001285 and eClass V11.0 27400602 classifications support accurate cataloging and procurement.
The Sendzimir galvanization provides long-term corrosion resistance, reducing maintenance needs in harsher environments. The rail’s robust steel construction and standardized DIN profile lower replacement and spare parts costs, while ETIM/eClass alignment speeds procurement. Overall, expect improved uptime, faster assembly, and lower lifecycle costs in automation installations.
