2CPX062556R9999
Part Number: 2CPX062556R9999
Product Information
Extended Description

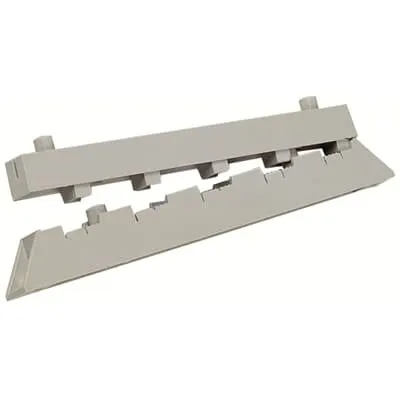

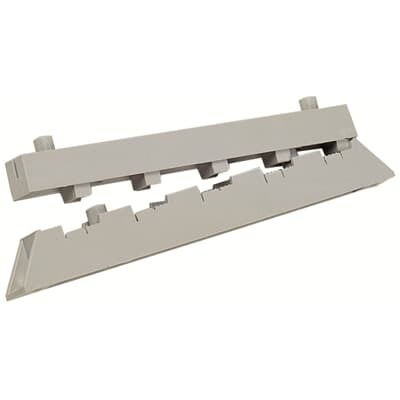

2CPX062556R9999 ABB: for a rated current of 360 A, Busbar holder, 5-pole, Busbar center distance: 40 mm, packaging unit 10 piece
Rated Current (In)
360 A
Number of Poles
5P
Enclosure Type
Busbar holder
Material
Plastic
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Busbar Holders
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
487a689f-782d-418e-89c6-f95112fdb7a4 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
230 mm
Product Net Height
35 mm
Product Net Depth / Length
20 mm
Product Net Weight
1.13 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.175 kg
Declaration of Conformity - CE
EU Declaration of Conformity Busbar Holders
Instructions and Manuals
Mounting instruction ZX620/ZB5
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001166 - Busbar support
ETIM 9
EC001166 - Busbar support
eClass
V11.0 : 27400607
Object Classification Code
U
