2CPX062679R9999
Part Number: 2CPX062679R9999
Product Information
Extended Description

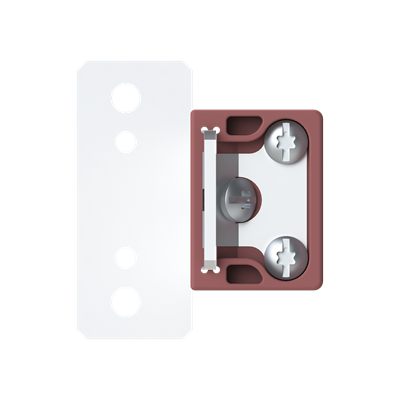

2CPX062679R9999 ABB: Deep angle piece for busbar modules, for through-wiring of the Cu rails, for stepless mounting of 20—100 mm, installation depth between deep angle piece and cover — 105—160 mm. The deep angle pieces can be used for protection-insulated and earthed assembly on EDF and WR profiles.
Model Number
Fastening parts/-set
Accessory Type
Fastening parts/-set
Enclosure Type
Interior fitting system
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
102 mm
Product Net Height
60 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.219 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.23 kg
E-Number (Norway)
2408002
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZW39/ZW59
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.0 : 27182807
Object Classification Code
U
