2CPX062712R9999
Part Number: 2CPX062712R9999
Product Information
Extended Description

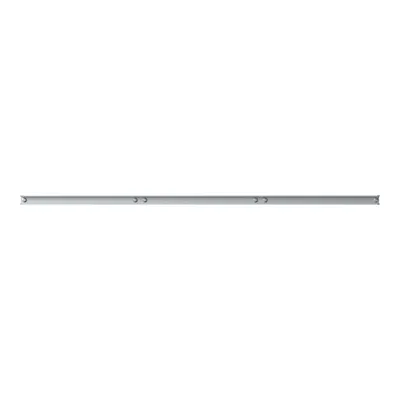

2CPX062712R9999 ABB: Horizontal transverse profile rail, not installed, field width 3 (750 mm), for field separation into top and bottom, incl. mounting screws. The use of a transverse profile rail is necessary to connect different field widths. The system component is suitable for the WR mounting frame.
Model Number
Mounting rail
Enclosure Type
Slide rails
Mounting Type
Screw mounting
Surface Finishing
Galvanised
Material
Steel
Mounting Position
horizontal
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
19 mm
Product Net Depth / Length
15 mm
Section Width
3
Product Net Weight
10.059 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
10.461 kg
E-Number (Norway)
2410411
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002518 - Profile (enclosure/cabinet)
ETIM 9
EC002518 - Profile (enclosure/cabinet)
eClass
V11.0 : 27180907
Object Classification Code
U
