2CPX062745R9999
Part Number: 2CPX062745R9999
Product Information
Extended Description

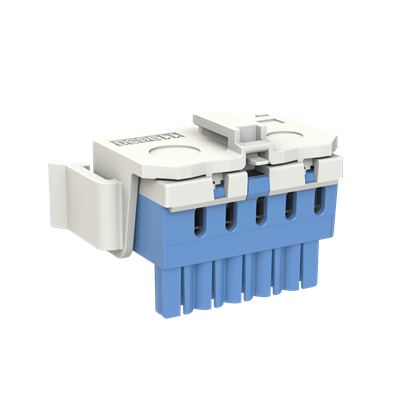

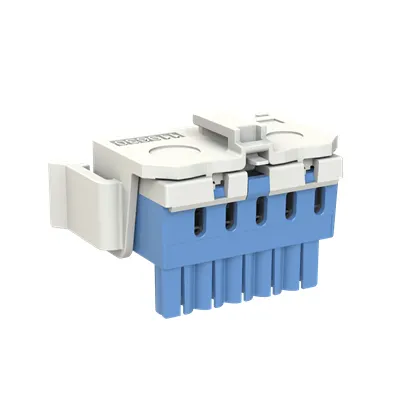

2CPX062745R9999 ABB: N quick-plug-in terminal with ZK15 adaptor for side mounting in UK5… , A3… or for snapping on the top-hat rail, clear color coding: N = blue, number of terminals: 5 x 1.5 - 4 mm² (spring clamp technology) + 0 x 2.5 to 25 mm² (screw connection technology), external dimensions H x W x D in mm: 28 x 39 x 25 mm, simple labelling of the terminal points (DIN VDE 0603 Part 1) with pre-printed, self-adhesive number strips.
Rated Operational Voltage
Maximum 230 V
Operational Voltage
230 V
Rated Current (In)
63 A
Number of Poles
1P
Number of Clamp Positions
5
Number of Line Terminals
5
Accessory Type
terminals
Enclosure Type
Enclosure accessories
Terminal Connection Type
N/RDC Terminal
Color
blue
Rated Cross-Section
2 - Fine-Strand with Cable End Sleeve 1.5...2.5 mm²
Terminal Type
Quick-Terminal
RoHS Information
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903;20230921
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
39 mm
Product Net Height
28 mm
Product Net Depth / Length
25 mm
Product Net Weight
0.05 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.052 kg
E-Number (Sweden)
2200484
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
Instructions and Manuals
Mounting instruction ZK...B ZK...G
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro | 2CPC000377C0101
ETIM 8
EC000446 - Push in terminal
ETIM 9
EC000446 - Push in terminal
eClass
V11.0 : 27141104
Object Classification Code
U
