2CPX062958R9999
Part Number: 2CPX062958R9999
Product Information
Extended Description

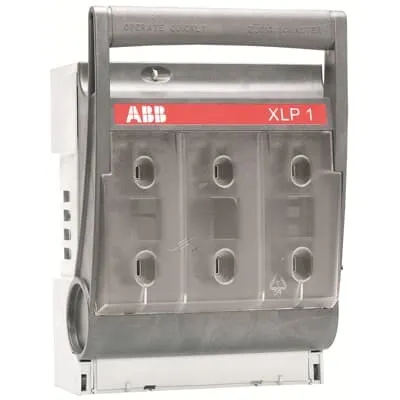

2CPX062958R9999 ABB: Fuse switch disconnector NH1, rated current (In) max 250 A, without separator shutters, with screw connection M10, for installation on separator cross beam with EDF and WR mounting frame.
Suitable For
NH1
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
250 A
Rated Short-time Withstand Current Low Voltage (Icw)
50 kA
Rated Conditional Short-Circuit Current (Inc)
50 kA
Rated Uninterrupted Current (Iu)
250 A
Number of Poles
3P
Actuator Type
Cover grip
Connection Type
M10 Connector
Device
NH1
Enclosure Type
Protective devices
Cable Entry Position
Other
DIN Place Units
0
Meter Boards
0
Switches Operating Mechanism
Front
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Product Net Width
115 mm
Product Net Height
100 mm
Product Net Depth / Length
170 mm
Product Net Weight
2.35 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.444 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001040 - Fuse switch disconnector
ETIM 9
EC001040 - Fuse switch disconnector
eClass
V11.0 : 27371401
Object Classification Code
U
