2CPX063167R9999
Part Number: 2CPX063167R9999
Product Information
Extended Description

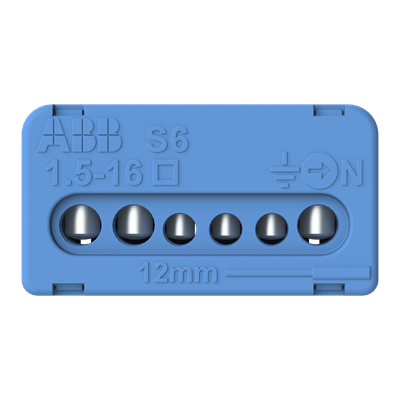

2CPX063167R9999 ABB: N screw type terminal for plug-in carrier, assembly without tools using simple plug-in and latching equipment, clear color-coding: N = blue, flexible terminal system for multiple N-circuits, number of terminals: 3 x 16 mm² + 3 x 6 mm² (screw connection technology)
Rated Operational Voltage
Maximum 230 V
Operational Voltage
230 V
Rated Current (In)
100 A
Number of Poles
1P
Number of Clamp Positions
66
Number of Line Terminals
6
Accessory Type
terminals
Enclosure Type
Enclosure accessories
Mounting Type
Direct mounting
Terminal Connection Type
Side
Insulation Material
Thermoplastic
Accessories Available
No
Color
blue
Rated Cross-Section
1 - Solid-Core 1,5...16 mm² | 2 - Fine-Strand with Cable End Sleeve 1.5...16 mm² | 2 - Fine-Strand with Cable End Sleeve 1,5...16 mm² | 3 - Fine-Strand without Cable End Sleeve 0 mm² | 4 - Multi-Wired 16 mm²
Terminal Type
Screw Terminals
RoHS Information
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903;20230921
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
50 mm
Product Net Height
27 mm
Product Net Depth / Length
21 mm
Product Net Weight
0.04 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.042 kg
E-Number (Sweden)
2201284
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
Instructions and Manuals
Mounting instruction ZKS..B / ZKS..G
ETIM 8
EC001284 - Single- and multi-pole terminal strip
ETIM 9
EC001284 - Single- and multi-pole terminal strip
eClass
V11.0 : 27141106
Object Classification Code
U
