2CPX063173R9999
Part Number: 2CPX063173R9999
Product Information
Extended Description

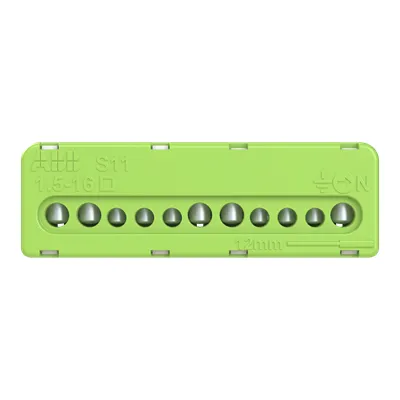

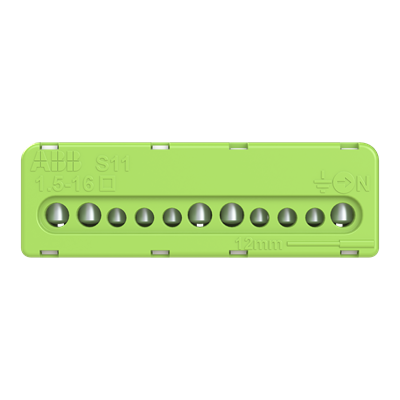

2CPX063173R9999 ABB: PE screw type terminal for plug-in carrier, assembly without tools using simple plug-in and latching equipment, clear color-coding: PE = green, flexible terminal system , number of terminals: 5 x 16 mm² + 6 x 6 mm² (screw connection technology)
Rated Operational Voltage
Maximum 230 V
Operational Voltage
230 V
Rated Current (In)
100 A
Number of Poles
1P
Number of Clamp Positions
1111
Number of Line Terminals
11
Accessory Type
terminals
Enclosure Type
Enclosure accessories
Mounting Type
Direct mounting
Terminal Connection Type
Side
Insulation Material
Thermoplastic
Accessories Available
No
Rated Cross-Section
1 - Solid-Core 1,5...16 mm² | 2 - Fine-Strand with Cable End Sleeve 1.5...16 mm² | 2 - Fine-Strand with Cable End Sleeve 1,5...16 mm² | 3 - Fine-Strand without Cable End Sleeve 0 mm² | 4 - Multi-Wired 16 mm²
Terminal Type
Screw Terminals
RoHS Information
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903;20230921
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
83 mm
Product Net Height
27 mm
Product Net Depth / Length
21 mm
Product Net Weight
0.057 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.059 kg
E-Number (Sweden)
2201294
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600 | EC Declaration of Conformity Consumer Unit AK600 - ÄŚSN EN 62208
Instructions and Manuals
Mounting instruction ZKS..B / ZKS..G
ETIM 8
EC001284 - Single- and multi-pole terminal strip
ETIM 9
EC001284 - Single- and multi-pole terminal strip
eClass
V11.0 : 27141106
Object Classification Code
U
