2CPX063177R9999
Part Number: 2CPX063177R9999
Product Information
Extended Description

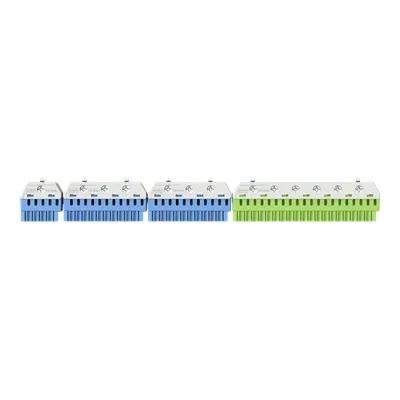

2CPX063177R9999 ABB: N/PE quick-plug-in terminal set for UK6.., ZK144B: N 4 x 25 + 14 x 4 mm², ZK82B: N 2 x 25 + 8 x 4 mm², ZK206G: PE 6 x 25 + 20 x 4 mm².
Rated Operational Voltage
Maximum 230 V
Operational Voltage
230 V
Rated Current (In)
63 A
Number of Poles
2P
Number of Clamp Positions
54
Number of Line Terminals
54
Accessory Type
terminals
Enclosure Type
Enclosure accessories
Terminal Connection Type
N/PE Terminal
Accessories Available
No
Rated Cross-Section
2 - Fine-Strand with Cable End Sleeve 1.5...25 mm²
Terminal Type
Quick-Terminal
RoHS Information
EU Declaration of Conformity Consumer Unit UK600
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
280 mm
Product Net Height
32 mm
Product Net Depth / Length
31 mm
Product Net Weight
0.246 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.256 kg
E-Number (Sweden)
2201277
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600
Instructions and Manuals
Mounting instruction ZKS..B / ZKS..G
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000446 - Push in terminal
ETIM 9
EC000446 - Push in terminal
eClass
V11.0 : 27141104
Object Classification Code
U
