2CPX064286R9999
Part Number: 2CPX064286R9999
Product Information
Extended Description

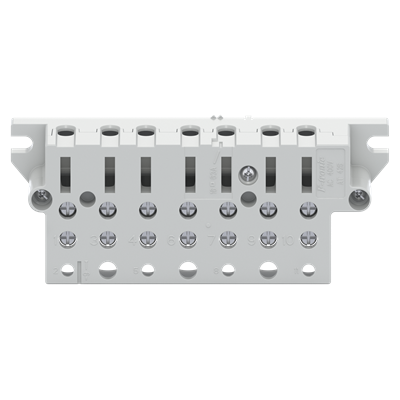

2CPX064286R9999 ABB: Meter plug terminal, three-phase current 63 A
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
63 A
Model Number
Adaptation for wiring systems
Number of Poles
7P
Number of Clamp Positions
7
Number of Line Terminals
7
Connection Type
Screw
Enclosure Type
Terminals
Mounting Type
Screw mounting
Accessories Available
Yes
RAL Number
RAL 9016 - Traffic White
Rated Cross-Section
2 - Fine-Strand with Cable End Sleeve 6...16 mm²
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Protection Class
Isolated (Class II)
Product Net Width
138 mm
Product Net Height
51 mm
Product Net Depth / Length
33 mm
Product Net Weight
0.267 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.3 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction ZK26x
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro | 2CPC000377C0101
ETIM 8
EC000446 - Push in terminal
ETIM 9
EC000446 - Push in terminal
eClass
V11.0 : 27141104
Object Classification Code
U
