2CPX064885R9999
Part Number: 2CPX064885R9999
Product Information
Extended Description

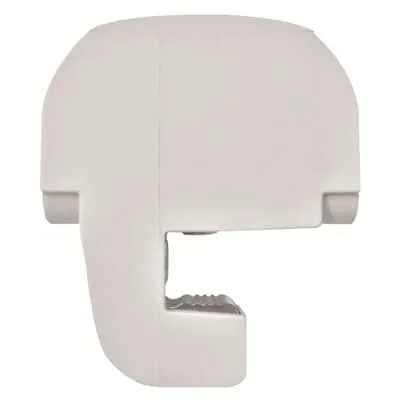

2CPX064885R9999 ABB: Connection terminal, to snap on copper busbar with retaining spring, Area of application for copper rail thickness: 5 mm, Connection cross-section from 1.5 mm² up to 16 mm², Terminals, 1-pole, packaging unit 1 piece
Suitable For
Other
Number of Poles
1P
Connection Type
Busbar
Enclosure Type
Terminals
Mounting Type
Snap mounting
Rated Cross-Section
16 mm
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f604124b-915c-48c6-b5c1-05d3a0f44974 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
11.5 mm
Product Net Height
30 mm
Product Net Depth / Length
22.5 mm
Product Net Weight
0.079 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.082 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro | 2CPC000377C0101
ETIM 8
EC000001 - Busbar terminal
ETIM 9
EC000001 - Busbar terminal
eClass
V11.0 : 27141146
Object Classification Code
U
