2CPX070560R9999
Part Number: 2CPX070560R9999
Product Information
Extended Description

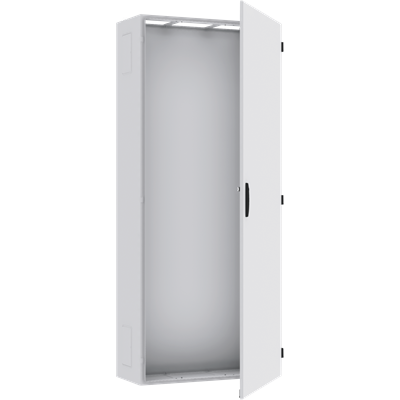

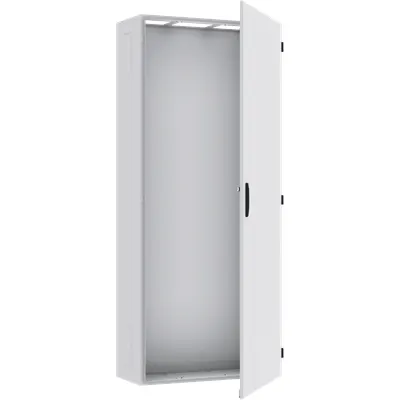

2CPX070560R9999 ABB: Floor-standing cabinet, Expansion option: Lateral and bottom, class of protection I (earthed), degree of protection IP55, Impact strength IK08, Powder-coated, in RAL 7035, enclosure out of Steel, single-leaf door, dimensions in mm (H x W x D): 1850 x 550 x 350, Grid unit 12 GU, Overall height 8, panel width 2, Space units 288
Number of Flange Openings
2
Number of Conduit Inlets
112
Number of Rows
12
Cover Plate Type
Door
Enclosure Type
Floor-standing cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Accessories Available
Yes
Cover Style
with Notch
DIN Place Units
288
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
6b4e3c15-b47f-4ced-afb8-e738ce123519 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP55
Protection Class
Grounded (Class I)
Width in Number of Modular Spacings
2
Product Net Width
550 mm
Product Net Height
1850 mm
Product Net Depth / Length
350 mm
Section Width
2
Product Net Weight
53.567 kg
Built-In Depth (t2)
299 mm
Thickness
Cabinet Plate 1 mm | Door Plate 1.5 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
55.71 kg
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Instructions and Manuals
Mounting instruction TG/TL/TW | Mounting instruction TZG/TZL/TZW
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Object Classification Code
U
