2CPX070573R9999
Part Number: 2CPX070573R9999
Product Information
Extended Description

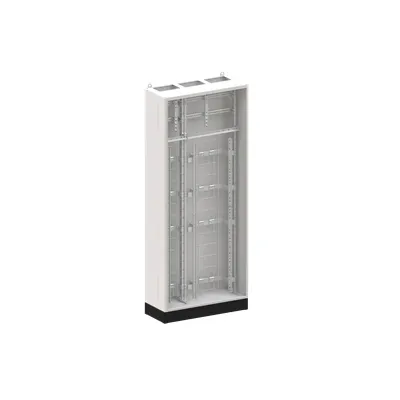

2CPX070573R9999 ABB: floor-standing cabinet, series TwinLine, partly assembled cabinet, for the internal use, without door, class of protection I (earthed), degree of protection IP30, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, IK code 08, powder-coated, in RAL 7035, enclosure out of sheet steel, without door, rear wall out of sheet steel, cable entry on top via flange opening pre-cut, on bottom via flange opening pre-punched, on side via flange opening pre-punched, dimensions in mm (H x W x D): 1850 x 800 x 350, Ratchet unit 12 GU, Overall height 8, panel width 3, Space units 432, assembled with device carrier
Number of Flange Openings
3
Number of Conduit Inlets
156
Number of Rows
12
Configuration Type
assembled with device carrier
Cover Plate Type
None
Enclosure Type
Floor-standing cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Without Door
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Accessories Available
Yes
Cover Style
with Notch
DIN Place Units
432
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP30
Protection Class
Grounded (Class I)
Width in Number of Modular Spacings
36
Product Net Width
800 mm
Product Net Height
1850 mm
Product Net Depth / Length
350 mm
Section Width
3
Product Net Weight
86.724 kg
Built-In Depth (t2)
299 mm
Thickness
Cabinet Plate 1 mm | Door Plate 1.5 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
90.193 kg
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Instructions and Manuals
Mounting instruction TG/TL/TW | Mounting instruction TZG/TZL/TZW
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
