ABB 2CPX070770R9999 Wall-mounting Cabinet - IP44
Part Number: 2CPX070770R9999
Quick Summary
ABB 2CPX070770R9999 wall-mounting cabinet provides robust protection for electrical control panels in industrial environments. Engineers often face cramped spaces and the need for reliable, compliant enclosures that speed installation and reduce wiring complexity. This ComfortLine cabinet meets IP44 protection, CE conformity, and RoHS/REACH compliance, supporting safe operation across demanding applications in manufacturing and process plants. With surface-mounted or partially recessed mounting, built-in DIN rails, and 144 DIN places across 4 rows, it streamlines panel build-outs. The 650 x 800 x 215 mm enclosure balances interior capacity with footprint, while sheet steel construction and protection class II double insulation help minimize lifecycle costs and maintenance.
Product Information
Extended Description

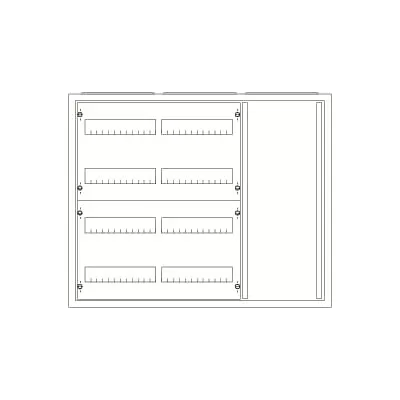

2CPX070770R9999 ABB: Complete Cabinet France, ComfortLine A34, protection class II (double insulated), dimensions in mm (H x W x D): 650 x 800 x 215, 4GU, 3PW
Rated Current (In)
250 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
2
Number of Rows
4
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Wall-mounting cabinet
Enclosure Type of Height
0
Mounting Type
Surface mounted/partially recessed mounted
Material
sheet steel
DIN Place Units
144
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Product Net Width
800 mm
Product Net Height
650 mm
Product Net Depth / Length
215 mm
Section Width
3
Product Net Weight
20.462 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
21.28 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZK...B ZK...G | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: 4 rows of 144 DIN place units (DIN Place Units 144) and a 650 mm x 800 mm x 215 mm footprint. Business Impact: Provides ample internal capacity for control gear and wiring, reducing the need for costly add-ons and enabling neater cable management. Application: Ideal for multi-function machine panels and process cabinets in automation lines. Feature: Surface mounted / partially recessed mounting and Lower Connection Space with DIN Rails (Top Hat Rails). Business Impact: Flexible installation options fit tight or retrofit scenarios while maintaining clean access to cabling and devices. Application: Retrofit projects and new builds in compact control rooms.Feature: IP44 protection and sheet steel construction with protection class II (double insulated). Business Impact: Delivers reliable dust and splash protection while simplifying safety requirements and minimizing insulation risk. Application: Harsh factory environments and areas with moderate washdown, reducing maintenance overhead.Feature: RoHS, REACH, CMRT, and WEEE compliance (EU directives and related programs). Business Impact: Ensures regulatory compliance across EU markets, lowering risk of non-compliance penalties and easing supplier audits. Application: Global manufacturing operations and European supply chains.Feature: 650 x 800 x 215 mm dimensions, 20.462 kg net weight, and 250 A rated current. Business Impact: Predictable fit in standard layouts and scalable power distribution without overwiring. Application: Centralized panel enclosures for power distribution and control in industrial automation.
Get a Quick Quote for a ABB 2CPX070770R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX070770R9999?
Enquire Now
FAQs
Installation starts with secure wall mounting at a location with adequate support. Affix the cabinet, ensure the lower connection space is accessible for DIN rails, then install Top Hat rails inside to support modules. Route power and signal cables through the enclosure’s entry points, verify IP44 seals, and finalize by mounting internal devices to the 144 DIN places. This approach minimizes wiring complexity and speeds commissioning while preserving serviceability.
Key specifications include an IP44 degree of protection, dimensions of 650 x 800 x 215 mm, a 4-row, 144 DIN unit capacity, and a 250 A rated current. The enclosure is a sheet steel, protection class II double-insulated wall-mounting cabinet suitable for surface mounted or partially recessed installations. The design offers built-in DIN rails and a lower space for easy wiring and device mounting.
Yes. The cabinet is IP44 rated, offering protection against solid objects and water splashes typical in manufacturing settings. Its sheet steel construction plus double insulation enhances durability and electrical safety. For environments with dust, splashes, or occasional washdown, this enclosure provides dependable protection while maintaining access for maintenance and upgrades.
The cabinet carries CE declarations of conformity and complies with RoHS and REACH directives, including CMRT and WEEE classifications. It follows EU environmental and safety guidelines, helping customers meet regulatory requirements across European markets. This also supports easier supplier audits and end-of-life planning for sustainable operations.
The combination of 144 DIN places, 4-row arrangement, and built-in DIN rails reduces assembly time and wiring errors, lowering labor costs during panel builds. IP44 protection minimizes unplanned maintenance due to dust and moisture ingress, while double insulation reduces insulation-related risks. Overall, customers typically see shorter project times, fewer field adjustments, and predictable lifecycle costs in automation projects.
