ABB 2CPX070771R9999 Wall-mounting cabinet - IP44
Part Number: 2CPX070771R9999
Quick Summary
ABB 2CPX070771R9999 wall-mounting cabinet protects electrical gear in control panels. Engineers often battle tight footprints, complex cable routing, and frequent field upgrades, so a compact, flexible enclosure reduces project risk and downtime. This ComfortLine A cabinet carries IP44 protection, CE conformity, and RoHS compliance, delivering robust safety and regulatory assurance for European installations. With 5 rows, 180 DIN placement units, and surface-mounted or recessed mounting, it supports scalable power distributions while minimizing total cost of ownership through easier installation and maintenance.
Product Information
Extended Description

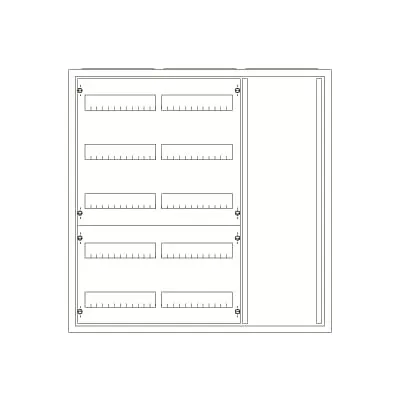

2CPX070771R9999 ABB: Complete Cabinet France, ComfortLine A35, protection class II (double insulated), dimensions in mm (H x W x D): 800 x 800 x 215, 5GU, 3PW
Rated Current (In)
250 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
2
Number of Rows
5
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Wall-mounting cabinet
Enclosure Type of Height
1
Mounting Type
Surface mounted/partially recessed mounted
Material
sheet steel
DIN Place Units
180
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Product Net Width
800 mm
Product Net Height
800 mm
Product Net Depth / Length
215 mm
Section Width
3
Product Net Weight
23.873 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
23.873 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZK...B ZK...G | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: ComfortLine A wall-mounting cabinet is designed for surface mounting or partial recess mounting, offering 5 rows and 180 DIN units. Business impact: provides a compact yet scalable footprint that reduces panel width and speeds wiring, cutting installation time and field labor. Application: ideal for industrial control panels and meter cabinet applications in compact enclosures. Feature: Lower Connection Space with DIN Rails (Top Hat Rails) supports neat cable routing and reliable component integration. Business impact: simplifies wiring harness management, lowers error rates, and improves serviceability. Application: suitable for retrofit projects and new builds requiring orderly DIN rail wiring. Feature: Sheet steel enclosure with IP44 protection delivers dust and splash resistance. Business impact: enhances long-term equipment reliability and reduces failure risk in harsh environments. Application: electrical distribution and control cabinets in manufacturing lines. Feature: 180 DIN Place Units, 2 panel widths, and 800 x 800 mm footprint with 215 mm built-in depth enable dense mounting. Business impact: increases packing density without sacrificing accessibility for maintenance. Application: high-density panel assemblies for utilities and process automation. Feature: Surface mounted/partially recessed mounting with 3PW and 5GU design cues supports flexible installation across varied sites. Business impact: lowers site adaptation costs and accelerates commissioning. Application: industrial installations requiring versatile mounting options and consistent ergonomics.
Get a Quick Quote for a ABB 2CPX070771R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX070771R9999?
Enquire Now
FAQs
The cabinet supports surface mounting or partial recessed mounting, with a built-in 215 mm depth and an 800x800 mm footprint. This dual mounting capability reduces site prep, allows quick retrofit in existing installations, and speeds commissioning for control panels and switchgear enclosures.
Yes. The enclosure provides a Lower Connection Space with DIN Rails (Top Hat Rails), enabling neat, standardized wiring and easy accessory installation. This design simplifies adding or reconfiguring devices while keeping cable management clean and compliant with common industry practices.
The unit carries IP44 protection, a CE declaration of conformity, and RoHS compliance. It also aligns with REACH requirements and WEEE classifications, supporting compliant manufacturing, safe disposal, and responsible supply chain practices.
The cabinet provides 180 DIN Place Units across 5 rows with a 800 mm width and 800 mm height, and 215 mm built-in depth. It supports 2 panel widths and is designed for 3-column section layouts, enabling dense yet accessible device mounting.
This ComfortLine A wall-mounting cabinet delivers regulatory compliance (CE, RoHS), robust IP44 protection, and a compact, dense mounting solution (180 DIN units in 5 rows). The result is faster installation, easier maintenance, reduced wiring errors, and lower total cost of ownership in industrial control and distribution applications.
