ABB 2CPX070773R9999 Wall-mounting cabinet - IP44
Part Number: 2CPX070773R9999
Quick Summary
ABB 2CPX070773R9999 Wall-mounting cabinet optimizes control-panel protection for industrial automation environments. This enclosure delivers rugged, space-efficient housing for electrical and automation equipment, simplifying wiring, maintenance, and future expansion. Designed for wall-mount installations in control rooms, switchgear alcoves, and machine panels, it supports 252 DIN rail units across 7 rows, enabling scalable, neat layouts in tight spaces. The cabinet carries CE conformity and RoHS compliance, with REACH declarations, and IP44 protection to guard against dust and water ingress. Its sheet-steel construction and surface-mounted/partially recessed mounting offer durable, cost-effective protection, while standardization with ComfortLine System Type A/B reduces sourcing complexity and accelerates project timelines. This translates to lower lifecycle costs and higher uptime.
Product Information
Extended Description

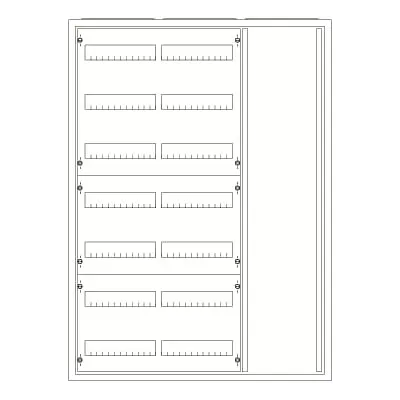

2CPX070773R9999 ABB: Complete Cabinet France, ComfortLine A37, protection class II (double insulated), dimensions in mm (H x W x D): 1100 x 800 x 215, 7GU, 3PW
Rated Current (In)
250 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
2
Number of Rows
7
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Wall-mounting cabinet
Enclosure Type of Height
3
Mounting Type
Surface mounted/partially recessed mounted
Material
sheet steel
DIN Place Units
252
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Product Net Width
800 mm
Product Net Height
1100 mm
Product Net Depth / Length
215 mm
Section Width
3
Product Net Weight
30.88 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
32.12 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZK...B ZK...G | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: Wall-mounting cabinet design provides compact, space-efficient housing for controls and automation. Impact: Enables safer, neater installations in constrained environments, reducing wiring errors and improving serviceability. Application: Ideal for control panels in manufacturing lines and machine enclosures where wall mounting saves floor space. Feature: 252 DIN place units spread over 7 rows delivers high-density panel capacity. Impact: Supports scalable control architectures with room for future I/O expansion, lowering retrofit costs. Application: PLCs, motor drives, and I/O modules in centralized control cabinets. Feature: Surface mounted/partially recessed mounting offers installation flexibility. Impact: Simplifies retrofits and new builds in retrofit-friendly layouts, cutting installation time. Application: Retrofit projects or new equipment in limited-depth installations. Feature: Sheet steel construction provides robust physical protection at a competitive price. Impact: Enhances asset longevity and reduces replacement costs in harsh environments. Application: Factory floors, assembly lines, and outdoors sheltered zones. Feature: Lower connection space with built-in DIN rails (Top Hat Rails) streamlines wiring and wiring harness management. Impact: Accelerates wiring, improves electrical density, and supports standardized distribution practices. Application: Electrical distribution in compact switchgear and automation cabinets. Feature: Compliance suite includes RoHS, REACH, CE declarations, and WEEE classification. Impact: Supports regulatory audits and corporate sustainability programs while avoiding non-compliant procurement delays. Application: Customer environments subject to EU environmental and safety directives. Feature: ComfortLine Cabinet System Type A/B compatibility ensures scalable, multi-site deployments. Impact: Reduces SKUs, simplifies maintenance, and improves supplier consistency across plants. Application: Global rollouts of control cabinets across multiple facilities.
Get a Quick Quote for a ABB 2CPX070773R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX070773R9999?
Enquire Now
FAQs
This cabinet is designed for wall-mount installation with surface mounting or partial recessed mounting options. It supports 252 DIN rail units across seven rows and uses Top Hat DIN rails in the lower connection space, enabling straightforward wiring and modular expansion. It is compatible with ComfortLine Cabinet System Type A/B components, simplifying multi-site procurement and standardization.
Key specs include dimensions of 1100 x 800 x 215 mm, a built-in 252 DIN unit capacity, weight around 30.88 kg, IP44 protection, sheet steel construction, and 7-row enclosure with two panel width options. The enclosure is CE compliant, RoHS and REACH declared, and suitable for surface-mounted or partially recessed installations in demanding environments.
Yes. The 1100 x 800 x 215 mm wall-mount cabinet with IP44 protection is tailored for control panels, PLC housings, and motor-control enclosures in manufacturing settings. Its high DIN-rail capacity and modular design accommodate future I/O growth, while its robust steel construction provides reliable protection in dusty, mildly moist environments.
The cabinet carries CE conformity, EU RoHS compliance, and REACH declarations, alongside WEEE categorization as large equipment. This combination supports regulatory audits and sustainability reporting, helping ensure legal and environmental compliance across European operations.
Benefits include reduced maintenance downtime due to robust protection and organized wiring, faster installation thanks to built-in DIN rails and standardized mounting, and lower total cost of ownership through standardized parts (ComfortLine Type A/B) across sites. The enclosure’s durability and compliance credentials also mitigate risk during audits and regulatory inspections.
