ABB 2CPX070774R9999 ComfortLine A Wall-Mounting Cabinet - IP44
Part Number: 2CPX070774R9999
Quick Summary
ABB 2CPX070774R9999 is a rugged wall-mounting cabinet for housing control electronics in industrial panels. Many installations struggle with limited space, insufficient IP protection, and complex mounting, risking downtime and maintenance delays. This cabinet meets IP44 protection, CE conformity, RoHS and REACH compliance, helping you meet safety and environmental standards. With its 1250 x 800 x 215 mm footprint and 288 DIN places, it supports scalable control deployments while simplifying installation and service. The double-insulated construction adds electrical safety margins, while the option for surface mounted or partially recessed mounting adapts to existing panel layouts. Ideal for factory automation, process control, and machine-building ecosystems, it pairs well with standard DIN rails and modular components.
Product Information
Extended Description

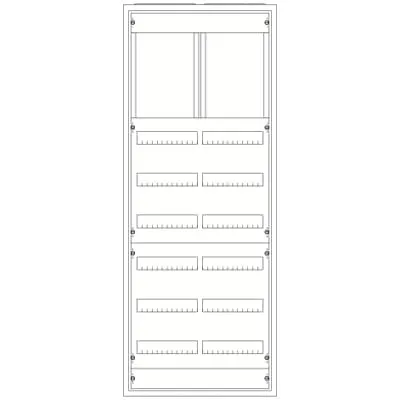

2CPX070774R9999 ABB: Complete Cabinet France, ComfortLine A38, protection class II (double insulated), dimensions in mm (H x W x D): 1250 x 800 x 215, 8GU, 3PW
Rated Current (In)
250 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
1
Number of Rows
6
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Wall-mounting cabinet
Enclosure Type of Height
4
Mounting Type
Surface mounted/partially recessed mounted
Material
sheet steel
DIN Place Units
288
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Product Net Width
800 mm
Product Net Height
1250 mm
Product Net Depth / Length
215 mm
Section Width
3
Product Net Weight
34.011 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
35.37 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZK...B ZK...G | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Large, rigid ComfortLine A38 enclosure measures 1250 x 800 x 215 mm and provides 288 DIN Place Units across six rows, enabling dense yet accessible control assemblies. This density reduces cabinet count and accelerates deployment while keeping wiring tidy and service-friendly, which translates to lower installation time and reduced downtime in factory automation projects. The lower connection space with DIN rails (Top Hat Rails) simplifies wiring, speeds commissioning, and makes retrofits more straightforward in existing lines. With protection class II double insulation, the cabinet delivers enhanced electrical safety and reduces the need for separate protective earth configurations in compliant installations. The IP44 rating protects against dust and water splashes in typical workshop environments, boosting uptime and reliability. RoHS and REACH declarations, along with WEEE categorization, help ensure regulatory compliance across EU markets and support sustainable end-of-life handling. Surface mounting or partial recessed installation offers flexible integration with legacy panels and new builds, while compatibility with standard DIN rails and modular components minimizes integration risk and shortens project timelines.
Get a Quick Quote for a ABB 2CPX070774R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX070774R9999?
Enquire Now
FAQs
This cabinet supports surface mounted and partially recessed mounting to match existing panel layouts. It also provides a lower connection space with DIN rails (Top Hat Rails), enabling straightforward wiring and easy future upgrades without costly rework.
Technical specs include a rated current of 250 A, 6 rows, and 288 DIN Place Units (SU). The enclosure measures 1250 mm (H) x 800 mm (W) x 215 mm (D), designed for robust control and distribution applications in industrial panels.
Yes. The cabinet carries EU Declaration of Conformity for the ComfortLine Cabinet System Type A/B, with RoHS status per EU Directive 2011/65/EU and Amendment 2015/863, and REACH declarations indicating no substances above threshold levels, facilitating regulatory compliance in audits and tenders.
Absolutely. Its six-row, 288-DIN layout, IP44 protection, and double-insulated construction make it well-suited for factory automation, process control, and machine-building environments where dense, reliable control housing is required.
The combination of a durable sheet steel enclosure, standardized DIN rails, and modular components reduces installation time, wiring complexity, and downtime. Regulatory compliance simplifies audits, while scalable 288-DIN capacity supports future expansions without replacing cabinets, delivering lower total cost of ownership.
