ABB 2CPX070775R9999 Wall-mounting cabinet - IP44
Part Number: 2CPX070775R9999
Quick Summary
ABB 2CPX070775R9999 Wall-mounting cabinet provides secure housing for electrical and control equipment in industrial installations. This enclosure helps engineers overcome space constraints and wiring complexity by offering a compact, surface-mounted or partially recessed solution. It carries critical certifications and compliance marks, including IP44 protection for moisture and dust ingress, CE conformity, and RoHS/REACH declarations. The sturdy sheet-steel construction, built-in DIN-rail support, and 9-row configuration streamline installation, reduce downtime, and support scalable control architectures. With 324 DIN places, a 1400x800x215 mm footprint, and compatibility with the ComfortLine cabinet ecosystem in France, it delivers predictable sizing and fast system integration.
Product Information
Extended Description

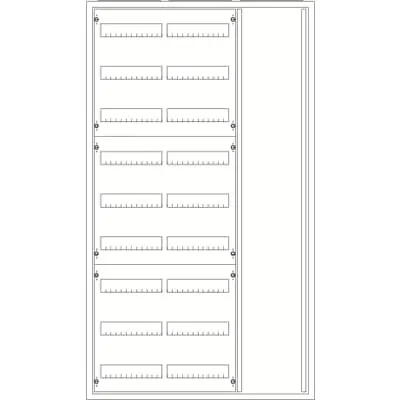

2CPX070775R9999 ABB: Complete Cabinet France, ComfortLine A39, protection class II (double insulated), dimensions in mm (H x W x D): 1400 x 800 x 215, 9GU, 3PW
Rated Current (In)
250 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
2
Number of Rows
9
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Wall-mounting cabinet
Enclosure Type of Height
5
Mounting Type
Surface mounted/partially recessed mounted
Material
sheet steel
DIN Place Units
324
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Product Net Width
800 mm
Product Net Height
1400 mm
Product Net Depth / Length
215 mm
Section Width
3
Product Net Weight
37.574 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
39.08 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZK...B ZK...G | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Durable sheet-steel enclosure provides rigidity and EMI shielding while controlling total cost of ownership. This translates to fewer panel replacements and lower maintenance, especially in demanding factory environments where reliability is essential for uptime and safety. The cabinet is rated for 250 A, enabling centralized power distribution and streamlined cabling for high-current motor and automation panels, reducing wiring errors and installation time. Its surface mounting or partial recessed mounting option offers installation flexibility in retrofit projects and tight plant spaces, enabling faster deployment and space optimization. Lower Connection Space with DIN Rails (Top Hat Rails) simplifies wiring and future expansions, supporting neat, code-compliant layouts and easier upgrades without relocating equipment. RoHS and REACH compliance, plus a WEEE designation, support sustainability goals and regulatory audits, while CE conformity ensures market-ready documentation for European projects. The 324 DIN unit capacity and 9-row arrangement support scalable automation architectures, benefiting long-term planning and lifecycle cost control. Overall, this cabinet aligns with ComfortLine ecosystem requirements, making it a practical, future-ready choice for France-based installations and global rollouts alike.
Get a Quick Quote for a ABB 2CPX070775R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX070775R9999?
Enquire Now
FAQs
The cabinet provides a Lower Connection Space with DIN Rails (Top Hat Rails) and supports surface mounted or partially recessed installation. It accommodates 324 DIN place units across 9 rows, enabling neat wiring and scalable panel expansion without custom brackets.
It features IP44 protection, a CE Declaration of Conformity for ComfortLine Cabinet System Type A/B, RoHS compliance under EU directive 2011/65/EU with Amendment 2015/863, and a REACH declaration. WEEE category 4 also applies, helping with regulatory audits and end-of-life planning.
Yes. It is rated for 250 A and provides 324 DIN unit capacity across 9 rows, designed for robust power distribution. The double-insulated (Class II) enclosure enhances safety, while surface mounting supports compact, high-density control panels.
Absolutely. The unit is specified as Complete Cabinet France, ComfortLine A39 and aligns with ComfortLine ecosystem guidelines, including appropriate mounting instructions. This makes it well-suited for regional installations and standardized France-based deployments.
RoHS and REACH compliance reduce regulatory risk, while durable sheet-steel construction and a 37–38 kg weight support a long service life. WEEE compliance and CE conformity simplify end-of-life handling and audits, contributing to lower lifecycle costs and predictable maintenance planning.
