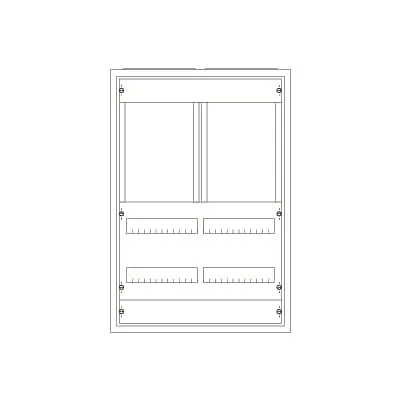

ABB 2CPX070780R9999 ComfortLine A Wall-mounting cabinet - IP44
Part Number: 2CPX070780R9999
Quick Summary
ABB 2CPX070780R9999 ComfortLine A wall-mounting cabinet is designed to shield control gear in industrial environments. It supports surface mounting or partial recessed installation with two rows and 120 DIN units, delivering organized panel layouts even in tight spaces. A common challenge in electrical rooms is balancing protection, accessibility, and regulatory compliance; this enclosure addresses that with IP44 protection, double insulation, and sturdy sheet steel construction. The cabinet also carries CE conformity, RoHS and REACH declarations, and a WEEE classification, ensuring readiness for regional markets. By pairing standard DIN rails with a compact footprint, it simplifies installation and maintenance while enabling scalable expansion and reliable long-term operation for critical automation lines.
Product Information
Extended Description
2CPX070780R9999 ABB: Complete Cabinet France, ComfortLine A25, protection class II (double insulated), dimensions in mm (H x W x D): 800 x 550 x 215, 5GU, 2PW
Rated Current (In)
250 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
1
Number of Rows
2
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Wall-mounting cabinet
Enclosure Type of Height
1
Mounting Type
Surface mounted/partially recessed mounted
Material
sheet steel
DIN Place Units
120
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Product Net Width
550 mm
Product Net Height
800 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
17.934 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
18.65 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZK...B ZK...G | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: IP44 protection and sheet steel enclosure provide reliable dust and moisture resistance, safeguarding sensitive automation components. Business Impact: Reduced risk of equipment failure and longer service intervals in challenging environments. Application: Machine rooms and outdoor-adjacent panels where ingress protection is essential. Feature: 120 DIN Place Units across 2 rows enables dense, organized wiring with consistent panel layouts. Business Impact: Higher packing density lowers cabinet footprint while improving maintenance accessibility. Application: Complex control panels and multi-drive installations requiring clear segregation of power and signal wiring.Feature: Surface mounted or partially recessed mounting offers installation flexibility without compromising protection. Business Impact: Faster deployment and retrofit capabilities in legacy facilities. Application: Upgrades to existing lines where limited mounting space exists.Feature: Lower Connection Space with DIN Rails (Top Hat Rails) simplifies wiring and future expansion. Business Impact: Streamlined wiring, easier component upgrades, and scalable configurations. Application: Panel assemblies with distributed power and control circuits.Feature: RoHS, REACH, and WEEE compliance along with CE declarations minimize regulatory risk. Business Impact: Smooth cross-border approvals and reduced product-handling risk. Application: Global manufacturing environments and supplier audits. The combination of 800 mm x 550 mm footprint with an 215 mm depth and 250 A rating supports robust, future-ready control enclosures for industrial automation, delivering measurable gains in efficiency and uptime.
Get a Quick Quote for a ABB 2CPX070780R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX070780R9999?
Enquire Now
FAQs
The cabinet features a Lower Connection Space with DIN Rails (Top Hat Rails) and 120 DIN Place Units, designed for standard 35 mm DIN rails. With two rows and surface mounting or partial recessed mounting, wiring is streamlined and expansion is straightforward, making it highly compatible with common panel assemblies.
It provides IP44 protection and a 250 A rated current. The enclosure is made from sheet steel and accommodates 120 DIN units across 2 rows, with a built-in depth of 215 mm and dimensions of 800 x 550 mm. This combination supports robust control and power distribution within compact footprints.
Yes. The IP44-rated ComfortLine cabinet is designed for indoor industrial environments where dust and moisture exposure is a concern. It also adheres to RoHS and REACH declarations, and carries a CE conformity, ensuring regulatory readiness across markets and reducing risk during audits.
The cabinet features CE Declaration of Conformity, RoHS information, REACH documentation, and WEEE classification. These certifications support regulatory compliance in multiple regions and help ensure environmental and safety standards are met for industrial applications.
Choosing ComfortLine A delivers durable, compliant enclosures with easy wiring via DIN rails, scalable layouts for future upgrades, and reduced maintenance and downtime. The robust sheet steel construction and IP44 protection help extend service life in busy automation environments, supporting predictable ROI through reliability and regulatory-ready cabinets.
