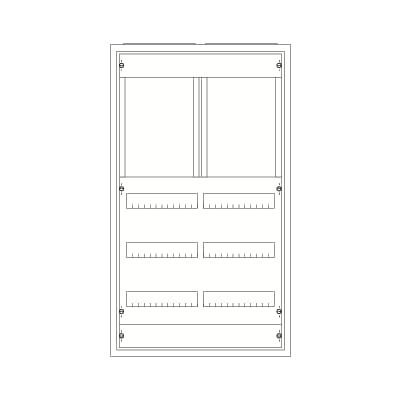

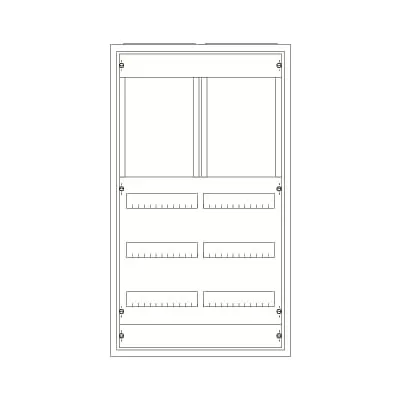

ABB 2CPX070781R9999 Wall-mounting cabinet - IP44
Part Number: 2CPX070781R9999
Quick Summary
ABB 2CPX070781R9999 is a wall-mounting cabinet designed to house and protect control equipment in industrial panels. Many engineers struggle with efficient space utilization, wiring access, and ensuring compliance in harsh environments. Notably, the cabinet meets IP44 protection, CE conformity, and RoHS/REACH requirements, giving you safety and regulatory confidence. With a 950 x 550 x 215 mm footprint and 144 DIN units across three rows, it enables scalable, modular layouts while simplifying installation. For panel builders, surface mounting/partially recessed mounting flexibility, plus lower-space DIN rails, reduces setup time and field modifications. The sheet steel construction and double insulated protection class II design add mechanical robustness and long-term safety.
Product Information
Extended Description
2CPX070781R9999 ABB: Complete Cabinet France, ComfortLine A26, protection class II (double insulated), dimensions in mm (H x W x D): 950 x 550 x 215, 6GU, 2PW
Rated Current (In)
250 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
1
Number of Rows
3
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Wall-mounting cabinet
Enclosure Type of Height
2
Mounting Type
Surface mounted/partially recessed mounted
Material
sheet steel
DIN Place Units
144
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Product Net Width
550 mm
Product Net Height
950 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
20.084 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
21 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZK...B ZK...G | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
IP44 protection provides robust ingress protection, reducing dust and splash risk and increasing uptime in demanding factory environments. This translates to fewer field repairs and lower maintenance costs, especially on crowded production lines that require reliable enclosure performance. The 950 x 550 x 215 mm footprint, 144 DIN units across three rows, and 6GU/2PW configuration enable scalable control architectures, accelerating panel assembly and reducing wiring complexity for automation projects. Sheet steel construction with double insulation (Protection Class II) delivers mechanical robustness and electrical safety without the need for extra grounding, supporting safe operation in shared electrical spaces and minimizing safety audits. Lower connection space with DIN rails simplifies wiring, enabling faster installation, easier retrofits, and compatible integration with standard control components. RoHS and REACH compliance, together with CE declarations, reduce regulatory risk and streamline supplier approvals for multinational manufacturing programs. Flexible mounting options—surface mounted or partially recessed—enhance installation versatility across legacy sites and new builds, saving custom fabrication time and associated costs.
Get a Quick Quote for a ABB 2CPX070781R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX070781R9999?
Enquire Now
FAQs
Yes. It features a lower connection space with DIN rails, supports 144 DIN unit placement across 3 rows, and is suitable for surface mounting or partial recessed installation. Its dimensions and mounting flexibility align with common industrial enclosure practices, helping you integrate new gear with minimal layout disruption.
The enclosure supports a rated current of 250 A, with 144 DIN places across 3 rows (6GU, 2PW layout). It measures 950 x 550 x 215 mm and provides IP44 protection, enabling reliable operation for centralized control and distribution in demanding environments.
Ideal for manufacturing, process automation, and electrical distribution panels, especially where dust, splashes, or humidity are present. The IP44 rating and robust sheet steel construction make it well-suited for factory floors, warehouses, and semi-outdoor installations that require reliable protection and regulatory compliance.
The cabinet carries CE conformity, RoHS compliance under EU Directive 2011/65/EU with Amendment 2015/863, and REACH declarations. WEEE classification is noted for proper end-of-life handling. These certifications support regulatory approvals, audits, and sustainable procurement programs.
The flexible mounting, DIN-rail compatibility, and partial recessed options reduce installation time and field modifications, lowering labor costs. Double-insulated Class II construction enhances safety, reducing grounding complexity and inspection overhead. Overall, the cabinet protects critical assets, reduces downtime, and supports scalable, cost-efficient panel builds.
