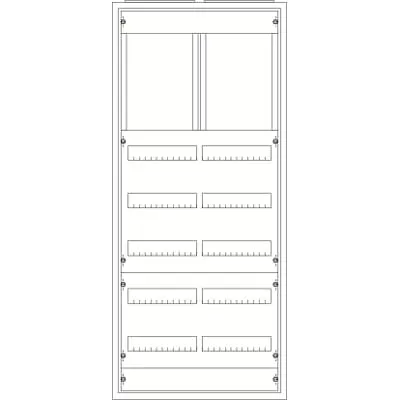

ABB 2CPX070783R9999 Wall-mounting cabinet - IP44
Part Number: 2CPX070783R9999
Quick Summary
ABB 2CPX070783R9999 is a wall-mounting cabinet designed to house control electronics and distribution equipment in industrial environments. Engineers often struggle with space constraints, wiring chaos, and regulatory compliance in compact control rooms. It delivers IP44 protection, CE conformity, and RoHS/REACH declarations to simplify audits and field service. Built for ComfortLine configurations with DIN rails, it supports standardized layouts and scalable upgrades, while reducing installation time and risk.
Product Information
Extended Description
2CPX070783R9999 ABB: Complete Cabinet France, ComfortLine A28, protection class II (double insulated), dimensions in mm (H x W x D): 1250 x 550 x 215, 8GU, 2PW
Rated Current (In)
250 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
1
Number of Rows
5
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Wall-mounting cabinet
Enclosure Type of Height
4
Mounting Type
Surface mounted/partially recessed mounted
Material
sheet steel
DIN Place Units
192
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Product Net Width
550 mm
Product Net Height
1250 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
26.774 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
27.84 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction A-Schrank | Mounting instruction ZK...B ZK...G | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Sheet steel enclosure with IP44 protection provides rugged durability while maintaining safety with double insulation. This reduces the risk of environmental ingress and electrical faults, lowering maintenance costs and downtime in harsh factory spaces. The cabinet is sized at 1250 x 550 x 215 mm and accommodates 192 DIN units across five rows, with a 250 A rated current, ensuring ample space for standard PLCs, relays, and terminal blocks. The surface mounted or partially recessed mounting option plus a lower connection space for DIN rails simplifies integration of common top-hat rails, speeding panel assembly and future upgrades. Compliance features include RoHS, REACH, CMRT, and WEEE, backed by CE declarations, which mitigates regulatory risk and streamlines procurement across EU sites. Compatibility with the ComfortLine Cabinet System supports standardized layouts, easing cross-site deployments and spare-part planning.
Get a Quick Quote for a ABB 2CPX070783R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX070783R9999?
Enquire Now
FAQs
The cabinet supports surface mounting or partial recessed installation with a built-in lower connection space that accommodates standard DIN rails. This flexibility simplifies retrofits in existing panels and enables quick reconfiguration as system layouts evolve, minimizing downtime and reducing install costs.
It is rated for 250 A with 192 DIN place units across 5 rows, and its dimensions are 1250 mm (H) x 550 mm (W) x 215 mm (D). The enclosure is IP44 and built as a double-insulated (Protection Class II) system, suitable for protected indoor environments and compliant with European standards.
Yes. The cabinet carries an EU Declaration of Conformity for the ComfortLine Cabinet System Type A/B, RoHS compliance under Directive 2011/65/EU and amendments, and REACH declarations. These certifications reduce regulatory risk, simplify supplier audits, and support European manufacturing deployments.
Ideal for control panels, motor control centers, and distribution cabinets in manufacturing, process automation, and energy management. Its five-row, 192-DIN unit format, together with DIN-rail compatibility, makes it suitable for mid-scale automation lines and standardized site installations across multiple facilities.
Standardized ComfortLine architecture, easy DIN-rail mounting, and robust IP44 protection minimize maintenance intervals and facilitate rapid upgrades. The result is lower lifecycle costs, faster installation across sites, and predictable spare-part planning, delivering measurable return on investment in regulated industrial environments.
