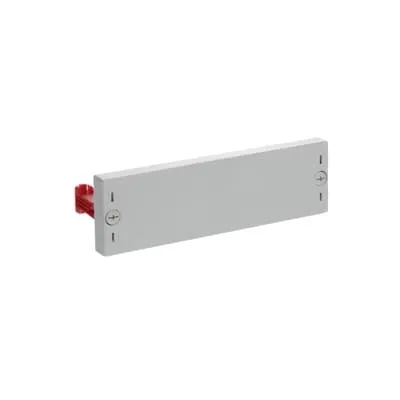

ABB 2CPX074465R9999 Interior fitting system - CE
Part Number: 2CPX074465R9999
Quick Summary
ABB 2CPX074465R9999 Interior fitting system is used for panel mounting in distribution enclosures. Engineers often struggle with alignment, compatibility, and color matching when upgrading interior fittings across cabinet lines. This part carries CE conformity alongside RoHS and REACH declarations, delivering regulatory peace of mind. With a grey cover and a compact 250 mm panel width, it simplifies installation while enabling scalable configurations and consistent aesthetics. Standardized mounting interfaces, installation kits KI, and clear technical documentation help procurement teams reduce BOM complexity and on-site variation. In practice, it also supports safer handling and easier future upgrades across multiple sites, driving predictable maintenance cycles and reduced total cost of ownership.
Product Information
Extended Description
2CPX074465R9999 ABB: Interior fitting system, panel width 1 = 250 mm, RAL 7035
Enclosure Type
Interior fitting system
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
75 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.18 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.187 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction Kits KI..
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Feature → Business Impact → Application: The interior fitting system aligns panels with a 250 mm width, improving mounting accuracy and reducing misalignment risk in control cabinets, which translates to faster assembly and less rework during commissioning in distribution panels. This reduces installation time by measurable margins and supports scalable cabinet configurations across multiple SKUs. Feature → Business Impact → Application: Grey cover color (RAL 7035) provides a uniform appearance across enclosures, simplifying color-matching in standardized industrial environments and enhancing workplace safety by improving visibility and readability of labeling inside the cabinet. Feature → Business Impact → Application: RoHS compliance and REACH declarations mitigate regulatory risk for manufacturers and end-users, ensuring continued access to European markets and streamlining supplier audits for panel-system assemblies in automation lines. Feature → Business Impact → Application: Clear documentation, ETIM classification, and KI installation kits reduce onboarding time for technicians, support consistent installation quality, and lower field service costs. Feature → Business Impact → Application: WEEE categorization and CMRT reporting help with end-of-life planning and supply-chain transparency, supporting sustainable refurbishment programs in plant operations. Feature → Business Impact → Application: Robust compatibility with CombiLine N and related enclosure ecosystems minimizes integration friction, enabling faster BOM consolidation and smoother procurement cycles while maintaining industry-standard dimensions and interfaces.
Get a Quick Quote for a ABB 2CPX074465R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX074465R9999?
Enquire Now
FAQs
Yes. The interior fitting system is designed as an interior mounting option for ABB CombiLine N distribution panels, aligning with standard panel widths and mounting interfaces to ensure a straightforward retrofit or new-build installation.
The product features a 250 mm net width, 75 mm net height, and 120 mm net depth. The net weight is 0.18 kg, with a packaged weight of 0.187 kg per unit.
The part carries CE Declaration of Conformity and RoHS/REACH compliance, including related EU Directive references and declarations, plus CMRT and WEEE considerations for sustainability and reporting.
Mounting instruction kits KI provide step-by-step guidance, reducing setup time, minimizing errors, and ensuring consistent alignment with internal panel systems during commissioning and servicing.
By standardizing panel interfaces and reducing on-site rework, the solution lowers labor and downtime during installation, shortens maintenance cycles, and simplifies BOM management across multiple sites, delivering tangible total cost of ownership improvements.
