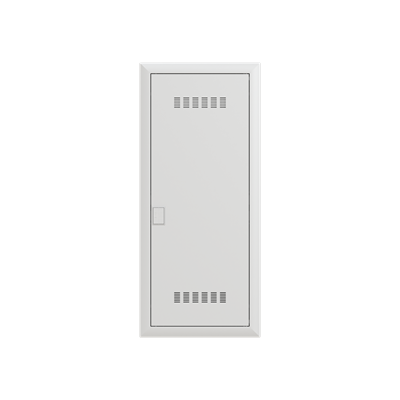

2CPX075003R9999
Part Number: 2CPX075003R9999
Product Information
Extended Description

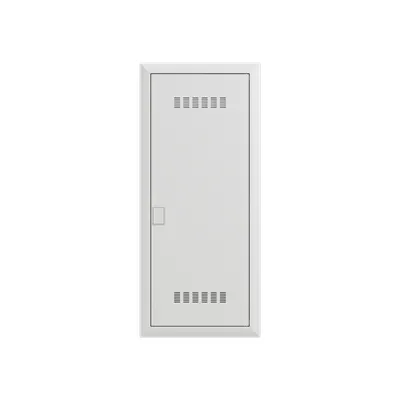

2CPX075003R9999 ABB: Prewired Consumer Unit, 2R-DIN with 1x RCBO 4 poles (6kA), 3x RCBO 2 poles (6kA) and 2R Media. This prewired solution is manufactured according to international IEC standards, for the CH market.
Rated Current (In)
0
Number of Poles Main Switch
0
Number of Outputs
4
Number of Phases
4
Number of Earth Leakage Circuit Breakers (ELCBs)
0
Number of Phases in Cooking Group
0
Overvoltage Category
III
Enclosure Type
Prewired Consumer Unit
Mounting Type
Flush mounting
Protection Type
Miniature circuit breaker (MCB)
Color
Traffic white
RoHS Information
EU Declaration of Conformity Completed consumer unit Type CH PWCU
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP40
Width in Number of Modular Spacings
12
Product Net Width
384 mm
Product Net Height
872 mm
Product Net Depth / Length
97 mm
Built-In Depth (t2)
88 mm
Package Level 1 Units
pack 1 piece
Declaration of Conformity - CE
EU Declaration of Conformity Completed consumer unit Type CH PWCU
Instructions and Manuals
Mounting instruction ZE228 | Mounting instruction UK662CVC/CWC UK663CVC/CWC
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
Object Classification Code
U
