2CPX077844R9999
Part Number: 2CPX077844R9999
Product Information
Extended Description

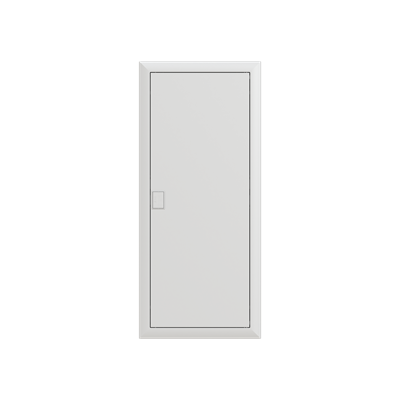

2CPX077844R9999 ABB: Consumer unit, series UK600, Expansion option: Lateral and bottom, for the internal use, with closed doorframe and door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, Powder-coated, in RAL 9016, enclosure out of thermoplast, with trim frame and metal door, door out of sheet steel, in RAL 9016, with TIP-in closure, door opening angle 120 degree, door hinge right or left, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 872 x 384 x 97, Shutter frame dimensions in mm (H x W x D): 872 x 384 x 9, Space units 60, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, with N/PE screw terminal, cable fastening rail integrated, assembled with device carrier, device support removable
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
63 A
Power Loss
Δt = 30K 69 W
Number of Rows
5
Closure Type
Push Button
Configuration Type
assembled with device carrier
Cover Plate Type
Door
Enclosure Type
Consumer unit
Mounting Type
Flush-/ hollow wall mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Plastic
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
60
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
Screw Terminals
RoHS Information
EU Declaration of Conformity Consumer Unit UK600
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
a1762673-49ba-4e47-a278-efe59499b985 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
12
Product Net Width
384 mm
Product Net Height
872 mm
Product Net Depth / Length
97 mm
Product Net Weight
5.856 kg
Built-In Depth (t2)
88 mm
Dimension Diagram
UK600 BL Dimensional Drawing | UK600 - Dimensional Drawing UK600 cabinet | Technical Drawing UK600
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.09 kg
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600
Instructions and Manuals
Mounting instruction UK6..EB / UK6..E2 / UK6..V
Building Information Modeling – BIM
ABB BIM UK600 Consumer, Media and Combi units
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
U
Standards
DIN 43871
