2CPX077848R9999
Part Number: 2CPX077848R9999
Product Information
Extended Description

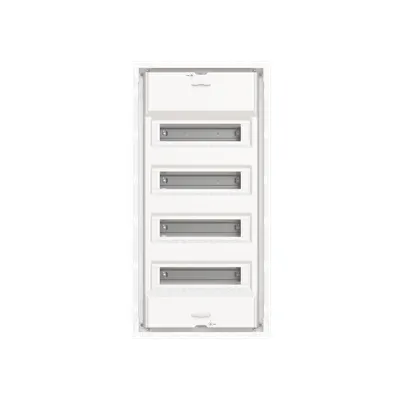

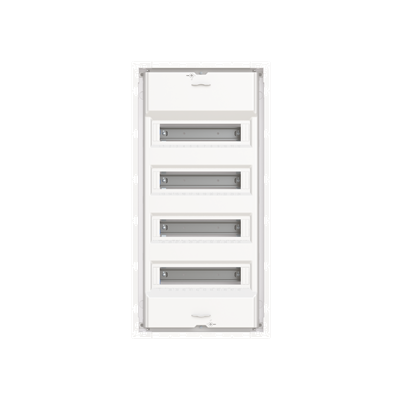

2CPX077848R9999 ABB: Consumer unit, series UK600, Expansion option: Lateral and bottom, for the internal use, without closed cover without door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, in RAL 9016, enclosure out of thermoplast, without frame and without door, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 722 x 362 x 97, Space units 48, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, with N/PE screw terminal, cable fastening rail integrated, assembled with device carrier, device support removable
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
63 A
Power Loss
Δt = 30K 62 W
Number of Rows
4
Configuration Type
assembled with device carrier
Cover Plate Type
optional
Enclosure Type
Consumer unit
Mounting Type
Flush-/ hollow wall mounting
Door Type
Without Door
Housing Material
Plastic
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
48
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
Screw Terminals
RoHS Information
EU Declaration of Conformity Consumer Unit UK600
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
a1762673-49ba-4e47-a278-efe59499b985 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
12
Product Net Width
362 mm
Product Net Height
722 mm
Product Net Depth / Length
97 mm
Product Net Weight
3.119 kg
Built-In Depth (t2)
88 mm
Dimension Diagram
UK600 BL Dimensional Drawing | UK600 - Dimensional Drawing UK600 cabinet | Technical Drawing UK600
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.244 kg
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600
Instructions and Manuals
Mounting instruction UK6..EB / UK6..E2 / UK6..V
Building Information Modeling – BIM
ABB BIM UK600 Consumer, Media and Combi units
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
U
Standards
DIN 43871
