2CPX077899R9999
Part Number: 2CPX077899R9999
Product Information
Extended Description

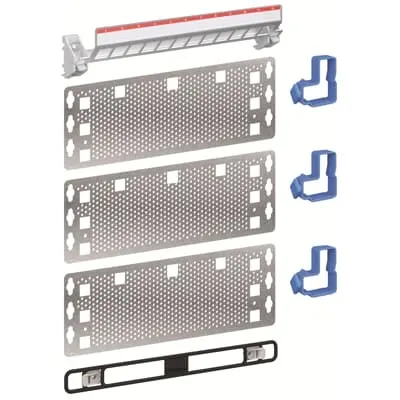

2CPX077899R9999 ABB: Enclosure accessories, series UK600, degree of protection IP30, in RAL MEHRFARBIG, dimensions in mm (H x W x D): 747 x 384 x 40, panel width 1, Space units 48, With Mulit Media board
Model Number
Universal
Number of Rows
4
Accessory Type
project kit
Configuration Type
With Mulit Media board
Enclosure Type
Enclosure accessories
Accessories Available
Yes
DIN Place Units
48
RAL Number
RAL 9016 - Traffic White
RoHS Information
EU Declaration of Conformity Consumer Unit UK600
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Product Net Width
384 mm
Product Net Height
747 mm
Product Net Depth / Length
40 mm
Section Width
1
Product Net Weight
1.07 kg
Dimension Diagram
UK600 BL Dimensional Drawing | UK600 Dimensional Drawing Media | UK600 - Tecnical Drawing Patch Panel | Technical Drawing UK600
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.113 kg
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600
Instructions and Manuals
Mounting instruction UK6..MB / UK6..MV / UK6..MW
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.0 : 27182807
Object Classification Code
U
