ABB 2CPX077942R9999 Meter Cabinet Surface Mount - IP44
Part Number: 2CPX077942R9999
Quick Summary
ABB 2CPX077942R9999 Meter Cabinet Surface Mount is a modular meter enclosure for industrial electrical distribution. Engineers often struggle with space constraints, wiring clarity, and compliance in compact switchgear rooms. This ComfortLine cabinet family delivers robust IP44 protection, RoHS-compliant materials, and CE conformity, enabling safe operation in damp environments while meeting European standards. The surface-mounted design simplifies installation in constrained spaces and supports partially recessed mounting for flexible layouts. By standardizing build quality and offering 72 DIN units with three distributor rows, it reduces assembly time and maintenance complexity, delivering predictable performance and lower lifecycle costs for panel builders and facility teams.
Product Information
Extended Description

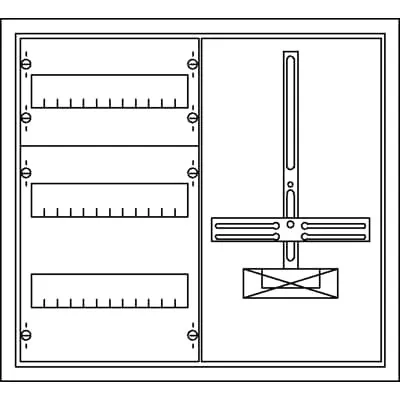

2CPX077942R9999 ABB: Meter board, series ComfortLine, assmebled cabinet, with Metering cross, degree of protection IP44, rated current 250 A, dimensions in mm (H x W x D): 500 x 550 x 215, not pre-wired, Number of reserve spaces 1, Number of distributor rows 3, Grid unit 3 GU, Overall height 00, panel width 2, Space units 72, covers out of Plastic, RAL 7035
Rated Current (In)
250 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
3
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Meter board
Enclosure Type of Height
00
Mounting Type
Surface mounted/partially recessed mounted
Material
sheet steel
DIN Place Units
72
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Product Net Width
550 mm
Product Net Height
500 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
15.843 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
16.5 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction BX2/KS...EX2-cabinet | Mounting instruction A-Schrank | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
IP44-rated protection and a rugged sheet steel enclosure translate to enhanced safety and reliability in damp or dusty environments, reducing unplanned downtime and warranty claims. The 72 DIN unit capacity across three distributor rows delivers scalable metering and orderly cable management, enabling faster changes and future expansion with minimal panel redesign. RoHS and REACH compliance, plus CE declarations, mitigate regulatory risk and simplify procurement in European facilities, while the WEEE and CMRT documentation support sustainable disposal and responsible sourcing. Surface mounting and partially recessed mounting options offer installation flexibility in tight utility rooms or retrofit projects, improving site ergonomics and labor efficiency. The not pre-wired design lowers field wiring time and errors, with clear mounting instructions to accelerate commissioning. Built for consistent quality, it lowers total cost of ownership for panel builders and maintenance teams.
Get a Quick Quote for a ABB 2CPX077942R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX077942R9999?
Enquire Now
FAQs
The ABB 2CPX077942R9999 Meter Cabinet supports flexible installation with a lower connection space fitted for DIN rails and a surface-mounted or partially recessed mounting option. It contains 72 DIN unit spaces across three distributor rows, compatible with standard 35 mm DIN rails, and it ships with mounting instructions to streamline the integration into existing panels and meter boards.
This meter cabinet meets CE declarations and RoHS compliance, with REACH information and a WEEE category aligned to European disposal requirements. It includes REACH information and CMRT documentation, and ETIM and eClass classifications for supplier data exchange. A formal EU Declaration of Conformity confirms suitability for European installations in regulated facilities.
Key technical specifications include a 250 A rated current, IP44 degree of protection, 72 DIN place units across three distributor rows, and overall dimensions of 500 x 550 x 215 mm. The cabinet is designed for surface mounting or partial recess, with a lower connection space for DIN rails and a 2 GU section width, not pre-wired to fit field wiring strategies.
Yes, the cabinet is designed for semi-harsh environments, with IP44 protection and a durable sheet steel enclosure finished in RAL 7035. The ComfortLine system specifies a robust, non-pre-wired cabinet suitable for indoor utility rooms, machine halls, and protected outdoor areas where moisture or dust may be present. For extreme outdoor exposure, additional weatherproof housings are recommended.
Investing in the ABB 2CPX077942R9999 Meter Cabinet yields measurable ROI through faster installation, standardized components, and easier maintenance. Its modular 72-DIN layout enables scalable metering, while compliant CE/RoHS/REACH documentation reduces regulatory risk. The surface-mounted design minimizes space penalties and downtime during upgrades, and the not pre-wired configuration speeds field wiring, lowering total cost of ownership for panel builders and facility managers.
