ABB 2CPX077943R9999 Meter Board - ComfortLine IP44
Part Number: 2CPX077943R9999
Quick Summary
ABB 2CPX077943R9999 Meter Board delivers organized power distribution for surface-mounted and recessed installations in industrial control panels. This compact, scalable solution helps engineers manage limited space, reduce wiring clutter, and simplify future expansion. With IP44 protection, CE conformity, and RoHS compliance, it also aligns with REACH declarations for safer operation. Not pre-wired by default, it offers flexible integration with existing systems and minimizes onsite labor during commissioning. Designed for meter cabinets and industrial automation environments, it supports standardized components and a reliable, cost-effective installation.
Product Information
Extended Description

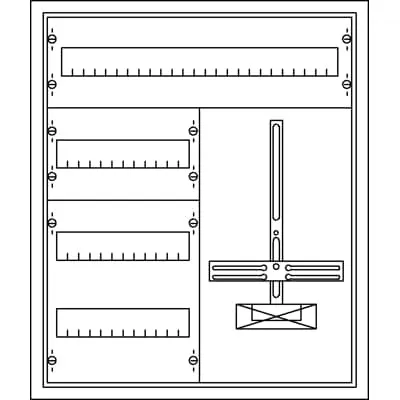

2CPX077943R9999 ABB: Meter board, series ComfortLine, assmebled cabinet, with Metering cross, degree of protection IP44, rated current 250 A, dimensions in mm (H x W x D): 650 x 550 x 215, not pre-wired, Number of reserve spaces 1, Number of distributor rows 4, Grid unit 4 GU, Overall height 0, panel width 2, Space units 96, covers out of Plastic, RAL 7035
Rated Current (In)
250 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
4
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Meter board
Enclosure Type of Height
0
Mounting Type
Surface mounted/partially recessed mounted
Material
sheet steel
DIN Place Units
96
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Product Net Width
550 mm
Product Net Height
650 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
19.57 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
20.4 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction BX2/KS...EX2-cabinet | Mounting instruction A-Schrank | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: IP44 protection and durable sheet steel construction. Business Impact: Provides safe operation in dusty or moist environments, reducing maintenance and service interruptions. Application: Ideal for protected control panels and plant rooms where reliability is critical. Feature: ComfortLine with 96 DIN units across 4 rows and a compact 650 x 550 x 215 mm footprint. Business Impact: Maximizes metering capacity in a single enclosure, enabling efficient space planning and faster project delivery. Application: Central meter cabinets for factories, water utilities, and process lines. Feature: Surface mounted or partially recessed mounting with lower DIN rail space. Business Impact: Simplifies installation and allows rapid wiring access, cutting field labor and commissioning time. Application: New builds and retrofits in space-constrained cabinets. Feature: Not pre-wired by default. Business Impact: Removes unnecessary pre-wiring, giving installers full control over wiring topology and accommodating site-specific cabling practices. Application: Customized automation panels and retrofits. Feature: Comprehensive compliance and data packaging (RoHS, REACH, WEEE, CE). Business Impact: Reduces regulatory risk, supports audit readiness, and streamlines procurement with rich data for ERP and PIM. Application: Enterprise-scale projects requiring robust compliance and data quality. Feature: Accessibility and maintenance benefits (Lower connection space with DIN rails). Business Impact: Improves terminal accessibility and reduces fault-finding time during maintenance. Application: High-availability systems in critical manufacturing lines.
Get a Quick Quote for a ABB 2CPX077943R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX077943R9999?
Enquire Now
FAQs
Yes. The meter board supports surface mounted and partially recessed installation. It includes a lower connection space for DIN rails (Top Hat Rails), enabling clean wiring and easy integration into standard control panels. Not pre-wired by default, allowing tailored wiring layouts to match existing practices.
The unit offers IP44 protection and CE conformity, with RoHS and REACH compliance. WEEE category 4 classification applies for large equipment disposal. These certifications help ensure regulatory alignment, safer operation, and smoother procurement and maintenance workflows.
Yes. It supports 96 DIN units across 4 rows and 2 panel widths within a single enclosure, enabling planning for future metering expansion. Not pre-wired by default, it provides flexibility to add or reconfigure circuits as requirements evolve, reducing retrofit complexity.
Typical applications include meter cabinets in industrial automation, utility panels for manufacturing lines, water/wastewater processing facilities, and other environments requiring structured meter distribution with robust protection and easy maintenance.
The IP44-rated sheet steel housing provides durable protection, minimizing downtime. RoHS and REACH compliance reduce regulatory risk, while modular, not pre-wired design speeds commissioning and future modifications, improving total cost of ownership and project ROI.
