ABB 2CPX077993R9999 Meter board - IP44
Part Number: 2CPX077993R9999
Quick Summary
ABB 2CPX077993R9999 Meter board is a robust surface-mounted cabinet for industrial metering in control panels. Engineers often contend with cramped footprints and wiring chaos when expanding metering capacity. It carries IP44 protection with RoHS and REACH compliance, plus CE conformity, ensuring safe, regulatory-ready operation. Designed for ComfortLine applications, it supports scalable metering with 72 DIN units and 3 rows, delivering faster installation, reduced wiring errors, and total cost-of-ownership improvements. Not pre-wired by default, it offers a flexible internal layout and easy retrofitting with DIN rails. For project teams, this translates to shorter commissioning cycles and clearer documentation for audits. In fast-moving manufacturing settings, the system scales with your load as you add meters or panels.
Product Information
Extended Description

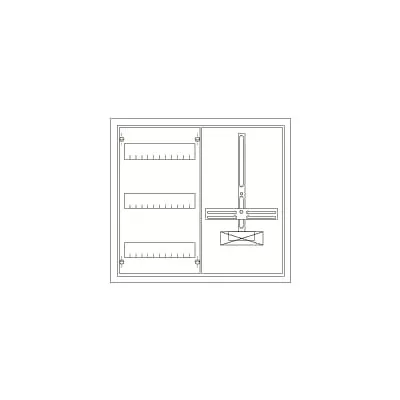

2CPX077993R9999 ABB: Meter board, series ComfortLine, assmebled cabinet, with Metering cross, degree of protection IP44, rated current 250 A, dimensions in mm (H x W x D): 500 x 550 x 215, not pre-wired, Number of reserve spaces 1, Number of distributor rows 3, Grid unit 3 GU, Overall height 00, panel width 2, Space units 72, covers out of Plastic, RAL 7035
Rated Current (In)
250 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
3
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Meter board
Enclosure Type of Height
00
Mounting Type
Surface mounted/partially recessed mounted
Material
sheet steel
DIN Place Units
72
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
bd69fc7e-54ec-4266-988c-95783dcb271e Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Product Net Width
550 mm
Product Net Height
500 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
17.081 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
17.764 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction BX2/KS...EX2-cabinet | Mounting instruction A-Schrank | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
