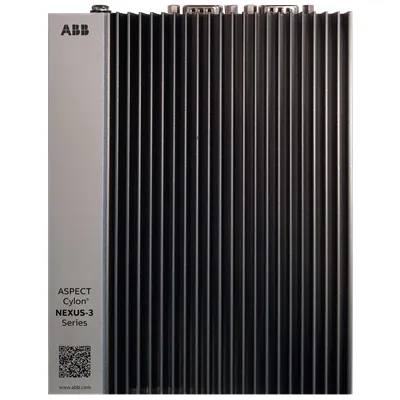

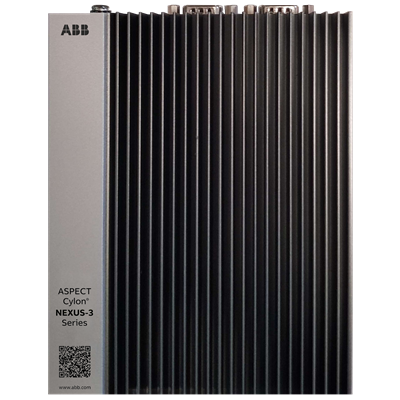

ABB 2CQG100111R2021 ASPECT Control Engine - IP20
Part Number: 2CQG100111R2021
Quick Summary
ABB 2CQG100111R2021 ASPECT Control Engine is a compact controller with embedded runtime and a web UI for scalable building and process automation. It reduces integration complexity by supporting two RS-485 ports configurable from 9.6 to 115.2 kbps and a single Ethernet port with TCP/IP for BACnet/IP and Modbus TCP, enabling streamlined network onboarding. The device carries IP20 protection, CE declarations, RoHS compliance, and WEEE alignment to simplify procurement and compliance. Field upgradeability to 10,000 points and 128 devices ensures future growth without hardware replacement, delivering lower lifecycle costs and faster commissioning for industrial automation, facilities management, and energy optimization.
Product Information
Extended Description
2CQG100111R2021 ABB: NEXUS ACE (ASPECT Control Engine) with embedded ASPECT runtime engine and web UI, includes 2 RS-485 ports, configurable for 9.6 to 115.2 kbps, capable of supporting up to a total of 64 devices (either MS/TP or TCP/IP) or 4,000 points. Support for 2 RS-485 protocols (BACnet MS/TP, Modbus RTU, or AAM PUP). One RJ-45 10/100/1000 MB Ethernet port with TCP/IP support for FT/Net, BACnet/IP, Modbus TCP and Cylon UC.32 Net. Field upgrade-able to support a maximum of 10,000 points and 128 devices as a combination of either TCP/IP or MS/TP connections.
Instructions and Manuals
Installation and Configuration Manual NEXUS-3 Series (.PDF) [EN]
Ambient Air Temperature
-25 … 70 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet NEXUS-3 Series [ZH]
Communication Interface
IP, MS/TP
Analog Inputs
0
Analog Outputs
0
Supply Voltage
24 … 24 V
Voltage Range
9 ... 36 V
Input Voltage Type
AC/DC
Product Net Width
119 mm
Product Net Height
154 mm
Product Net Depth / Length
56 mm
Product Net Weight
2.6 kg
Dimension Diagram
NEXUS-3.dxf
RoHS Information
CE Declaration NEXUS-3 (Onlogic K300)
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE Declaration NEXUS-3 (Onlogic K300)
ETIM 9
EC011487 - Free programmable controller
Embedded ASPECT runtime and web UI centralize control and visualization, reducing software layering and cutting commissioning time. Feature → Business Impact → Application: With an integrated runtime and browser-based interface, engineers can deploy configurations quickly and monitor system health remotely, improving mean time to repair. This is ideal for building automation where rapid fault isolation is critical and where operators benefit from real-time visibility on BACnet/MS·TP devices and Modbus RTU networks. In practice, this enables faster problem resolution and lower on-site labor costs in HVAC and process plants. Dual RS-485 ports configured 9.6 to 115.2 kbps support BACnet MS/TP, Modbus RTU, or AAM PUP, reducing the need for external gateways and enabling seamless retrofits. Business impact: fewer interfaces to manage, reduced installation time, and improved data integrity across field devices. Application: retrofit projects in facilities where legacy HVAC controllers rely on MS/TP or Modbus RTU. One RJ-45 Ethernet port with TCP/IP supports BACnet/IP and Modbus TCP, plus FT/Net for streamlined network management. Business impact: centralized supervision and easier integration with SCADA and cloud-based analytics. Application: enterprise-grade building automation and energy-management systems. Network capacity supports up to 64 devices and 4,000 points, with field upgrade to 10,000 points and 128 devices—scalability that protects capital expenditure. Business impact: grow without replacing hardware, lowering per-point cost. Application: large campuses or multi-building installations. Operating from 24–36 V and rated IP20, the unit is designed for industrial environments, delivering reliable performance and easier installation. Business impact: robust operation and reduced protective enclosure requirements. Application: mechanical rooms, control cabinets, and retrofit projects in automation ecosystems. Compliance and lifecycle support include RoHS, WEEE, and CE declarations, ensuring procurement alignment with regulations. Business impact: faster supplier qualification and lower risk during audits. Application: regulated industries and asset management programs.
