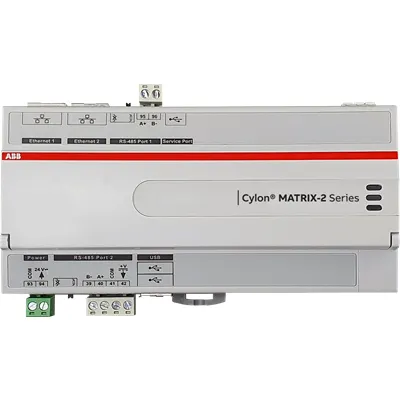

ABB 2CQG100115R1021 ASPECT Control Engine - CE & IP20
Part Number: 2CQG100115R1021
Quick Summary
ABB 2CQG100115R1021 ASPECT Control Engine provides embedded control for building automation systems. It helps engineers streamline device integration across BACnet MS/TP, Modbus RTU, and TCP/IP networks, reducing cabinet wiring and complexity. Many teams struggle with scaling control from a few points to hundreds without compromising reliability or security—this solution addresses that by supporting up to 1,250 points now and up to 2,500 points with field upgrades. The device carries CE marking and RoHS compliance for European deployments, an IP20 enclosure for indoor environments, and ETIM classification that simplifies procurement. For facilities aiming to consolidate control near the field, the embedded web UI and flexible RS-485 interfaces deliver tangible business value and faster commissioning.
Product Information
Extended Description
2CQG100115R1021 ABB: MATRIX ACE (ASPECT Control Engine) with embedded ASPECT runtime engine and web UI, includes 2 EIA-485 ports, configurable for 9.6 to 115.2 kbps, capable of supporting upto a total of 32 devices (either MS/TP or TCP/IP) or 1,250 points. Support for 2 RS-485 protocols (BACnet MS/TP, Modbus RTU, AAM PUP or Teletrol TSC), and a maximum of 64 MS/TP devices per port. One RJ-45 10/100 MB Ethernet port with TCP/IP support for FT/Net, BACnet/IP, Modbus TCP and Cylon UC32.netK. Field upgrade-able to support a maximum of 2,500 points and 128 devices as a combination of either TCP/IP or MS/TP connections.
Instructions and Manuals
MATRIX-2 Series User Guide (PDF)[EN]
Ambient Air Temperature
-25 … 50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet MATRIX-2 Series [RU] | Operating Instruction MATRIX-2 Series [RU]
Communication Interface
IP, MS/TP
Analog Inputs
0
Analog Outputs
0
Number of Batteries
0
Supply Voltage
24 … 24 V
Voltage Range
19.2 ... 28.8 V
Input Voltage Type
AC/DC
Power Consumption (@Pcons)
20 V·A
Product Net Width
90 mm
Product Net Height
57 mm
Product Net Depth / Length
163 mm
Product Net Weight
0.3 kg
Dimension Diagram
MATRIX-2 Series.dxf
RoHS Information
CE marking CBXi FBXi eSCi MATRIX-2
RoHS Status
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking CBXi FBXi eSCi MATRIX-2
ETIM 9
EC011487 - Free programmable controller
Feature: Dual EIA-485 ports supporting BACnet MS/TP, Modbus RTU, AAM PUP or Teletrol TSC. Business Impact: Flexible data exchange reduces external gateways, lowers hardware costs, and improves fault tolerance. Application: Ideal for BACnet/MS-TP and Modbus RTU networks in small to mid-size facilities, enabling rapid commissioning and easier diagnostics. Feature: Embedded ASPECT runtime with a web UI. Business Impact: Streamlined configuration, remote monitoring, and reduced on-site visits. Application: Applicable to facilities seeking faster start-ups and centralized visibility across controllers. Feature: 10/100 Mbps Ethernet with TCP/IP for BACnet/IP and Modbus TCP. Business Impact: Enables remote access, firmware updates, and seamless integration with networked BMS. Application: Suitable for modern building automation architectures with IP-based communication. Feature: Up to 32 devices or 1,250 points per MATRIX ACE configuration, upgradeable to 2,500 points and 128 devices. Business Impact: Clear scalability path protects capital investment and minimizes retrofit risk. Application: Progressive control schemes for HVAC, lighting, sensors, and occupancy systems. Feature: Compact, IP20 enclosure with 24–24 V supply and 19.2–28.8 V DC/AC input range. Business Impact: Easy panel mounting, broad supply compatibility, and dependable operation in indoor environments. Application: Use in control cabinets or wall-mounted installations with space constraints. Feature: Small footprint, 90×57×163 mm and 0.3 kg. Business Impact: Minimal space impact and simple replacement in retrofit projects. Application: Retrofit projects where shelf- or rack-space is limited. Feature: Field upgrade path to 2,500 points and 128 devices. Business Impact: Extends system life and reduces total cost of ownership by delaying hardware churn. Application: Long-term automation strategies with evolving plant requirements. Feature: RoHS, CE and ETIM compliance. Business Impact: Regulatory readiness and simplified procurement across regions. Application: European deployments and standardized sourcing for automation projects.
Get a Quick Quote for a ABB 2CQG100115R1021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CQG100115R1021?
Enquire Now
FAQs
The MATRIX ACE supports two RS-485 ports and multiple protocols (BACnet MS/TP, Modbus RTU, AAM PUP, Teletrol TSC). For installation, mount the unit in an indoor IP20 enclosure, wire the RS-485 ports to your field devices, connect the 10/100 Ethernet port for TCP/IP communication, and power with 24 V DC. Use the built-in web UI to configure protocols, baud rates (9.6–115.2 kbps), device counts, and point mappings, enabling rapid commissioning without external gateways.
The controller supports up to 32 devices or 1,250 points in its base configuration, with a field upgrade path to 2,500 points and 128 devices via TCP/IP or MS/TP connections. It features BACnet MS/TP, Modbus RTU, and TCP/IP compatibility, 2 EIA-485 ports, and a 24–28 V supply, delivering scalable, multi-protocol control for mid-size facilities.
Yes. The ABB matrix-ACE engine is designed for building automation and lightweight industrial control. Its dual RS-485 ports, BACnet MS/TP and Modbus RTU support, and TCP/IP connectivity make it ideal for HVAC, lighting, and sensor networks. Its field upgrade path protects asset value as facility requirements grow, while the embedded runtime and web UI simplify ongoing management.
The MATRIX-ACE controller carries CE marking and RoHS compliance (EU Directive 2011/65/EU), with a DoC indicating conformity. It is also listed under ETIM EC011487 for classification as a free programmable controller. WEEE B2B/B2C and other environmental declarations support procurement in regulated regions.
The upgrade path to 2,500 points and 128 devices reduces overall hardware replacement costs and extends usable life in evolving facilities. The embedded ASPECT runtime, web UI, and multi-protocol support lower commissioning time and maintenance needs, translating to faster project completion, lower labor costs, and better long-term ROI.
