2CQG200707R1021
Part Number: 2CQG200707R1021
Product Information
Extended Description

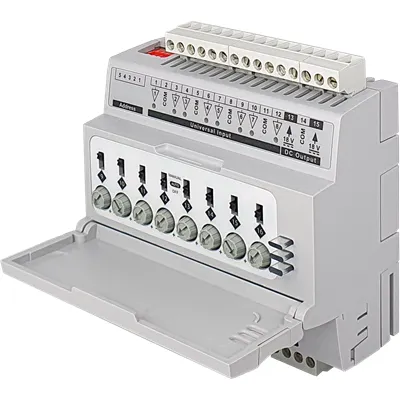

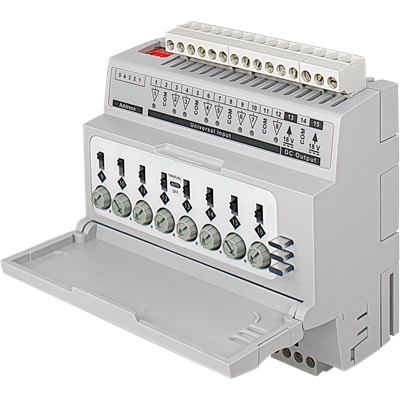

2CQG200707R1021 ABB: 16-Point Field Level eXpansion (FLX) I/O module with HOA switches and potentiometers for CBX-8R8. Module features 8 UniPutsTM with Relay outputs (software configurable for AI, AO, DI or DO-R (Relay)) and 8 UI. A maximum of three FLX modules may be added to a single CBX-8R8.
Instructions and Manuals
User manual Cylon_BACnet_system [DE] | User Manual FBXi Series(.PDF) [EN]
Ambient Air Temperature
-25 … 50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet FLX-8R8_FLX-8R8-H_FLX-4R4_FLX-4R4-H_FLX-16DI [RU] | Operating instruction FLX-4R4_FLX-4R4-H_FLX-8R8_FLX-8R8-H_FLX-16DI [ZH]
Communication Interface
FLX-Bus
Number of Outputs
Analog (0 ... 10 V / 4 ... 20 mA) 8
Number of Digital Inputs
0
Number of Inputs
Universal 8
Analog Inputs
8
Number of Batteries
0
Power Consumption (@Pcons)
5 W
Product Net Width
100 mm
Product Net Height
57 mm
Product Net Depth / Length
90 mm
Product Net Weight
0.2 kg
Dimension Diagram
FLX-8R8-H.dxf
RoHS Information
CE marking CBX FLX full product family
RoHS Status
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking CBX FLX full product family
ETIM 9
EC010957 - Free programmable controller extension
