2CQG201002R1021
Part Number: 2CQG201002R1021
Product Information
Extended Description

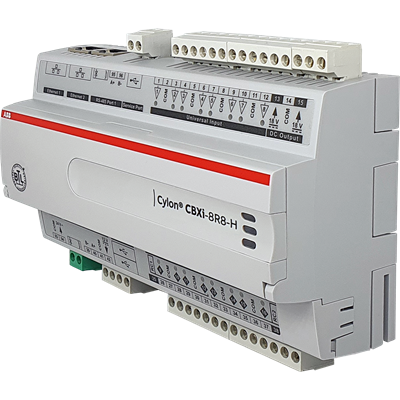

2CQG201002R1021 ABB: 16-Point BACnet/IP B-BC programmable controller with HOA switches and potentiometers for control and monitoring of small plant or HVAC equipment. Controller features 8 UniPuts™ with Relay outputs (software configurable for AI, AO, DI or DO-R (Relay)) and 8 UI. Includes support for 12 Modbus (TCP or RTU) devices or 120 Modbus Points.
Instructions and Manuals
User manual (.PDF) [EN] CBXi_system
Ambient Air Temperature
-25 … 50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet CBXi-System [ZH] | Operating instruction CBXi-8R8(-H) [ZH]
Communication Interface
IP, MS/TP
Number of Inputs
Universal 8
Number of Batteries
0
Voltage Range
19.2 ... 28.8 V
Power Consumption (@Pcons)
30 V·A
Product Net Width
90 mm
Product Net Height
57 mm
Product Net Depth / Length
163 mm
Product Net Weight
0.4 kg
Dimension Diagram
CBXi-8R8-H.dxf
RoHS Information
CE marking CBXi FBXi eSCi MATRIX-2
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking CBXi FBXi eSCi MATRIX-2
ETIM 9
EC011487 - Free programmable controller
