2CQG201014R1021
Part Number: 2CQG201014R1021
Product Information
Extended Description

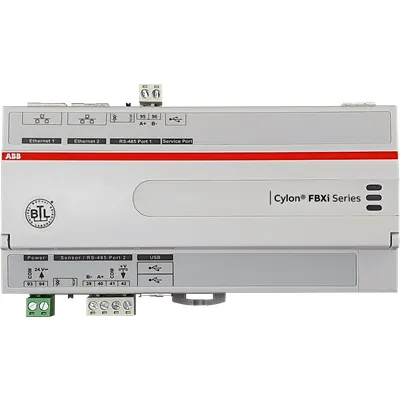

2CQG201014R1021 ABB: BACnet/IP B-BC programmable controller for control and monitoring of small plant or HVAC equipment. Expandable using FLX modules to 256 IO. Includes support for 640 Modbus Points.
Instructions and Manuals
User Manual FBXi Series(.PDF) [EN]
Ambient Air Temperature
-25 … 50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet FBXi Series [RU] | Installation and Wiring FBXi [EN]
Communication Interface
IP, MS/TP
Analog Inputs
0
Analog Outputs
0
Number of Batteries
0
Supply Voltage
24 … 24 V
Voltage Range
19.2 ... 28.8 V
Input Voltage Type
AC/DC
Power Consumption (@Pcons)
20 V·A
Product Net Width
90 mm
Product Net Height
57 mm
Product Net Depth / Length
163 mm
Product Net Weight
0.3 kg
Dimension Diagram
FBXi Series.dxf
RoHS Information
CE marking CBXi FBXi eSCi MATRIX-2
RoHS Status
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking CBXi FBXi eSCi MATRIX-2
ETIM 9
EC011487 - Free programmable controller
