2CQG201021R1011
Part Number: 2CQG201021R1011
Product Information
Extended Description

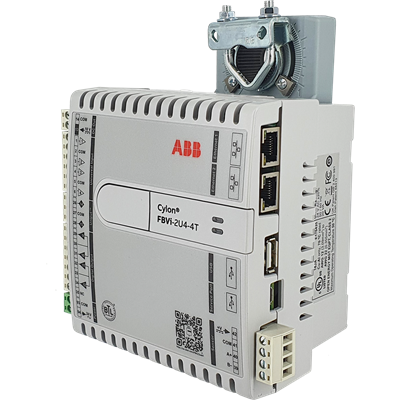

2CQG201021R1011 ABB: 10-Point BACnet/IP B-BC programmable VAV controller for control and monitoring of small plant or HVAC equipment. Controller features 2 UniPuts™ (software configurable for AI, AO, DI or DO-R (Relay)) 4 DO and 4 UI. Preloaded Strategy with Metric units and FusionAir support.
Instructions and Manuals
User Manual FBVi-2U4-4T (.PDF) [EN]
Ambient Air Temperature
Around the Enclosure -25 … 50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet FBVi-2U4-4T [RU] | Operating instruction FBVi [RU]
Number of Outputs
Triac 4 | Actuator 1
Number of Channels
10
Number of Digital Inputs
4
Number of Inputs
Universal 4
Analog Inputs
6
Analog Outputs
2
Number of Batteries
0
Supply Voltage
24 … 24 V
Input Voltage Type
AC
Product Net Width
130 mm
Product Net Height
100 mm
Product Net Depth / Length
100 mm
Product Net Weight
0.9 kg
Dimension Diagram
FBVi-2U4-4T.dxf
RoHS Information
CE marking FBVi
RoHS Status
Following EU Directive 2011/65/EU
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking FBVi
ETIM 9
EC011487 - Free programmable controller
