2CQG201023R1011
Part Number: 2CQG201023R1011
Product Information
Extended Description

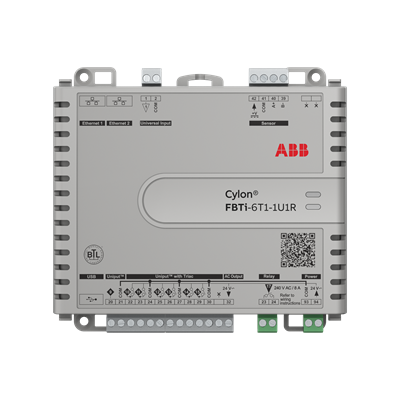

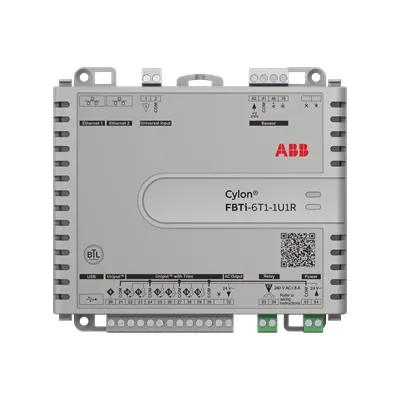

2CQG201023R1011 ABB: 9-Point BACnet IP/B-BC programmable controller for terminal applications such as fan coils, chilled ceilings and unit ventilation. Controller features 6 UniPuts™ with triac outputs (software configured for AI, AO, DI or DO-T (Triac), 1 UniPut™ without triac output, 1 UI and 1 Digital (Relay) Output. Freely programmable.
Instructions and Manuals
User Manual FBTi Series (.PDF) [EN]
Ambient Air Temperature
Around the Enclosure -25 … 50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet FBTi Series [ZH] | Operating instruction FBTi Series [ZH]
Number of Outputs
Relay 1
Number of Channels
9
Number of Digital Inputs
7
Number of Inputs
Universal 1
Analog Inputs
1
Analog Outputs
1
Number of Batteries
0
Supply Voltage
24 … 24 V
Input Voltage Type
AC
Product Net Width
151 mm
Product Net Height
137 mm
Product Net Depth / Length
49 mm
Product Net Weight
0.3 kg
Dimension Diagram
FBTi-6T1-1U1R.dxf
RoHS Information
CE marking FBTi
RoHS Status
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking FBTi
ETIM 9
EC011487 - Free programmable controller
