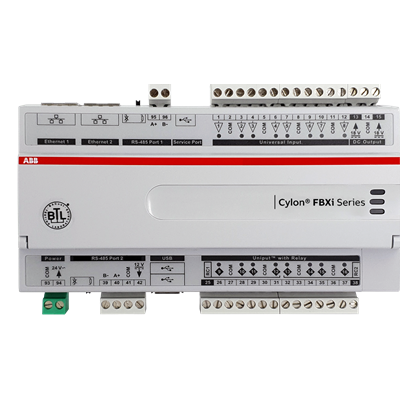

2CQG201029R1011
Part Number: 2CQG201029R1011
Product Information
Extended Description
2CQG201029R1011 ABB: 16 IO Point (expandable using FLX modules to 96 IO) BACnet/IP B-BC programmable controller with HOA switches and potentiometers for control and monitoring of small plant or HVAC equipment. Controller features 8 UniPuts™ with Relay outputs (software configurable for AI, AO, DI or DO-R (Relay)) and 8 UI. Includes support 450 Modbus Points.
Instructions and Manuals
User Manual FBXi Series(.PDF) [EN]
Ambient Air Temperature
Around the Enclosure -25 … 50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet FBXi Series [RU] | Installation and Wiring FBXi [EN]
Communication Interface
IP, MS/TP
Number of Channels
16
Number of Digital Inputs
8
Number of Inputs
Universal 8
Analog Inputs
8
Analog Outputs
8
Number of Batteries
0
Supply Voltage
24 … 24 V
Voltage Range
19.2 ... 28.8 V
Input Voltage Type
AC/DC
Power Consumption (@Pcons)
30 V·A
Product Net Width
90 mm
Product Net Height
57 mm
Product Net Depth / Length
163 mm
Product Net Weight
0.4 kg
Dimension Diagram
FBXi-8R8-H.dxf
RoHS Information
CE marking CBXi FBXi eSCi MATRIX-2
RoHS Status
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking CBXi FBXi eSCi MATRIX-2
ETIM 9
EC011487 - Free programmable controller
