2CQG201308R1021
Part Number: 2CQG201308R1021
Product Information
Extended Description

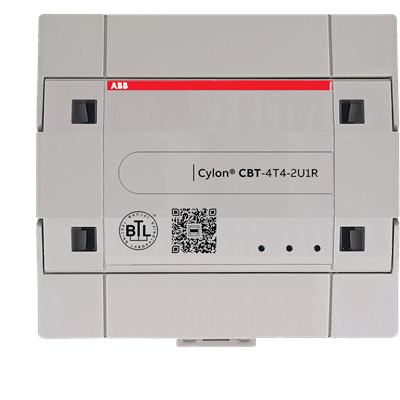

2CQG201308R1021 ABB: 11-Point BACnet B-AAC programmable controller for terminal applications such as fan coil units with ECM, heat pumps, unit vents, chilled ceilings, and miscellaenous points. Controller features 4 UniPutsTM with Triac outputs (software configured for AI, AO, DI or DO-T (Triac), 4 UI and 2 UniPuts and 1 X 8A mains Relay Digital Output. Freely programmable.
Instructions and Manuals
User manual Cylon_BACnet_system [DE]
Ambient Air Temperature
0 … 50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet CBT-4T4-2U1R [EN] | Operating instruction CBT-4T4-2U1R [RU]
Communication Interface
MS/TP
Number of Channels
11
Number of Digital Inputs
4
Analog Inputs
8
Analog Outputs
6
Number of Batteries
0
Supply Voltage
24 … 24 V
Voltage Range
20.4 ... 27.6 V
Input Voltage Type
AC/DC
Power Consumption (@Pcons)
12 V·A
Product Net Width
125 mm
Product Net Height
40 mm
Product Net Depth / Length
120 mm
Product Net Weight
0.3 kg
Dimension Diagram
CBT-4T4-2U1R.dxf
RoHS Information
CE marking CBT-4T4-2U1R
RoHS Status
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking CBT-4T4-2U1R
ETIM 9
EC011487 - Free programmable controller
