2CQG201309R1021
Part Number: 2CQG201309R1021
Product Information
Extended Description

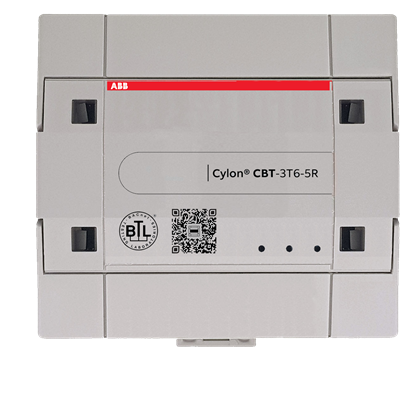

2CQG201309R1021 ABB: 14-Point BACnet B-AAC programmable controller for terminal applications such as heat pump, roof top unit, fan coil, chilled ceiling, and small air handling units. Controller features 3 UniPuts™ with Triac outputs (software configured for AI, AO, DI or DO-T (Triac), 6 UI and 5 Digital (Relay) Outputs. Freely programmable, no pre-loaded strategy.
Instructions and Manuals
User manual (.PDF) [EN] CBT-3T6-5R_HeatPump | User manual (.PDF) [EN] CBT-3T6-5R_RoofTopUnit
Ambient Air Temperature
0 … 50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet CBT-3T6-5R [EN] | Operating instruction CBT-3T6-5R [RU]
Communication Interface
MS/TP
Number of Channels
14
Number of Digital Inputs
6
Analog Inputs
6
Analog Outputs
3
Number of Batteries
0
Supply Voltage
24 … 24 V
Voltage Range
20.4 ... 27.6 V
Input Voltage Type
AC/DC
Power Consumption (@Pcons)
10 V·A
Product Net Width
125 mm
Product Net Height
40 mm
Product Net Depth / Length
120 mm
Product Net Weight
0.3 kg
Dimension Diagram
CBT-3T6-5R.dxf
RoHS Information
CE marking CBT-3T6-5R
RoHS Status
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking CBT-3T6-5R
ETIM 9
EC011487 - Free programmable controller
