2CQG201511R0021
Part Number: 2CQG201511R0021
Product Information
Extended Description

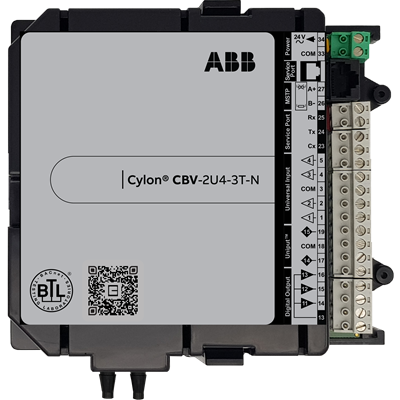

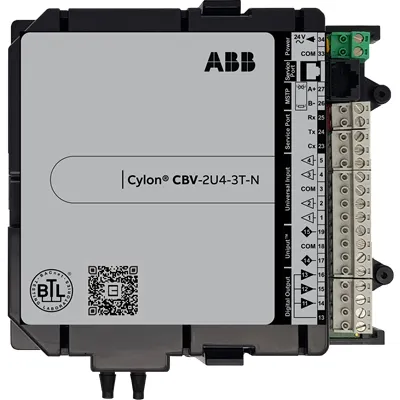

2CQG201511R0021 ABB: BACnet B-AAC single-duct VAV terminal unit controller without actuator. Controller features 2 UniPutsTM (software configured for AI, AO, DI or DO), 4 UI and 3 DO (Triac). Built-in differential pressure transducer (0-1.3"w.c., 0...320 Pa). Freely programmable, c/w pre-loaded factory configuration strategy with imperial units (degF).
Instructions and Manuals
User manual (.PDF) [EN] CBV-2U4-3T(-N)
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet CBV_Range [EN] | Operating instruction CBV [RU]
Number of Digital Inputs
5
Analog Inputs
6
Analog Outputs
2
Supply Voltage
24 … 24 V
Input Voltage Type
AC
Product Net Width
180 mm
Product Net Height
50 mm
Product Net Depth / Length
123 mm
Product Net Weight
0.3 kg
Dimension Diagram
CBV-2U4-3T.dxf
RoHS Information
CE marking CBV-2U4-3T (-N)
RoHS Status
Following EU Directive 2011/65/EU
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking CBV-2U4-3T (-N)
ETIM 9
EC011487 - Free programmable controller
