2CQG202003R2021
Part Number: 2CQG202003R2021
Product Information
Extended Description

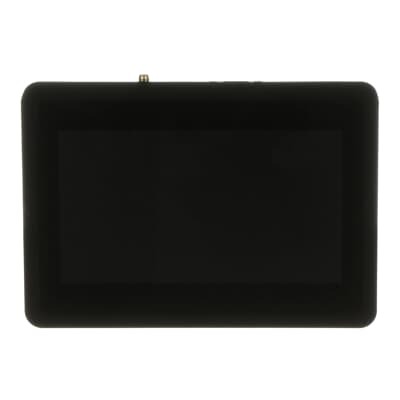

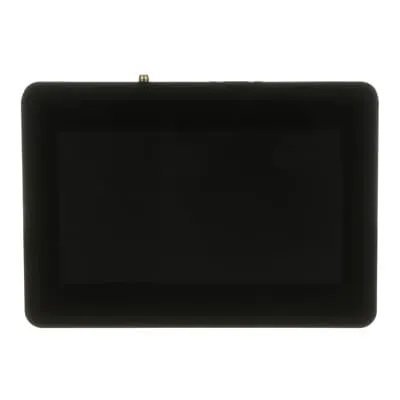

2CQG202003R2021 ABB: eXplore C7 7" touchscreen for use with either ASPECT® HTML interfaces, or Cylon's easy to program, easy to use menu-based SiteGuide user interface for basic supervision of a Cylon BMS site. Includes plug-top power supply.
Instructions and Manuals
User manual (.PDF) [EN] eXplore
Mounting Type
Surface mounting
Ambient Air Temperature
-10 … 60 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet eXplore [ZH] | Operating instruction eXplore [ZH]
Communication Interface
IP
Number of Batteries
0
Supply Voltage
100 ... 240 V
Input Voltage Type
AC/DC
Power Consumption (@Pcons)
8 W
Product Net Width
195 mm
Product Net Height
35 mm
Product Net Depth / Length
133 mm
Product Net Weight
0.6 kg
Dimension Diagram
eXplore7.dxf
RoHS Information
CE marking eXplore
RoHS Status
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking eXplore
ETIM 9
EC011541 - Display/operator panel
