2CQG256501R1021
Part Number: 2CQG256501R1021
Product Information
Extended Description

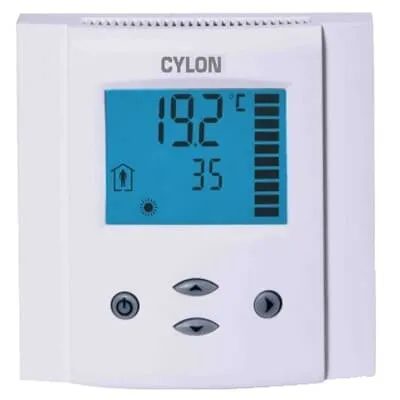

2CQG256501R1021 ABB: A dedicated room control display for fan coil control.
The programmable display allows the user to view and adjust selected parameters within the controller to which it is connected.
Note: Only compatible with the UCU10FC/K, UCU10VAV/K CBT12 and CBX-8R8 controllers.
Mounting Type
Surface mounting
Ambient Air Temperature
0 … 50 °C
Degree of Protection
Housing IP20
Data Sheet, Technical Information
Data sheet (.PDF) [DE] UCU_RoomControl
Communication Interface
CBT-STAT
Supply Voltage
10 ... 18 V
Voltage Range
10 ... 28 V
Input Voltage Type
DC
Power Consumption (@Pcons)
50 mA
Product Net Width
120 mm
Product Net Height
40 mm
Product Net Depth / Length
115 mm
Product Net Weight
0.1 kg
RoHS Information
CE marking UCU Room Display
RoHS Status
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE marking UCU Room Display
ETIM 9
EC011541 - Display/operator panel
