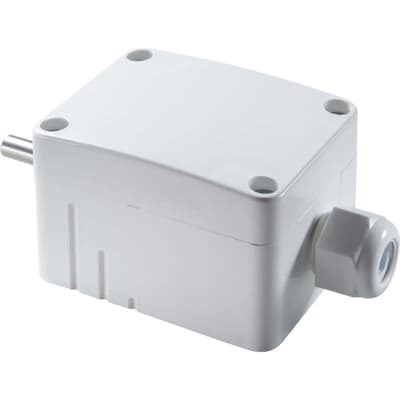

2CQG505101R2021
Part Number: 2CQG505101R2021
Product Information
Extended Description
2CQG505101R2021 ABB: NTC10k, -50...+90 °C, Housing: Polyamide white, IP65, 65 x 50 x 37.5 mm.
Ambient Air Temperature
-25 ... 90 °C
Degree of Protection
IP65 | IP43
Data Sheet, Technical Information
ags43_ags54_ags54ext
Application
Outside
Measuring Range
RelativeAirHumidity 0 … 85 %
Connection Type
Wired
Cover Mounting Type
Screw
Sensor Type
NTC10K with transducer
Number of Batteries
0
Supply Voltage
AC 21.6 ... 26.4 V | DC 15 ... 24 V
Power Supply Type
External
Element Material
Stainless Steel
RAL Number
RAL 9010 - Pure White
Housing Color
White
Product Net Width
65 mm
Product Net Height
45 mm
Product Net Depth / Length
50 mm
Product Net Weight
0.1 kg
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
ETIM 9
EC004240 - Sensor (HVAC)
