2CQG505108R2021
Part Number: 2CQG505108R2021
Product Information
Extended Description

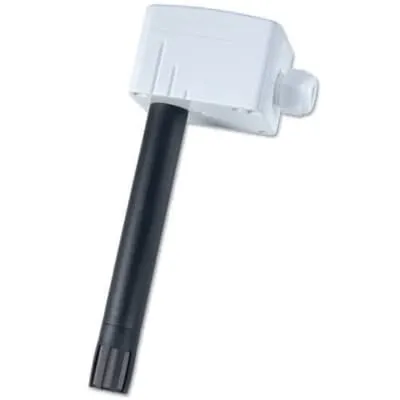

2CQG505108R2021 ABB: Humidity-transmitter 0 %...100 %rF = 0-10 V, Tolerance: ± 3% (15 %...85 %rF), Temp.Sensor: 1x NTC 10kOhm, Sensor tube: 140 x 19mm, Mat. ABS, Uv: 15-24 V DC / 24 V AC (±20 %); 50/60H, Connection head:Polyamide white, IP65
Ambient Air Temperature
-20 ... 70 °C
Degree of Protection
IP65
Data Sheet, Technical Information
Data sheet (.PDF) [EN] Produktblatt_LCN_FTK_65
Application
measuring relative humidity and temperature in gaseous
media of heating, cooling and air-conditioning systems
Sensor Type
Optional Type VS: Resistance NTC/PTC
Material
PA6
Product Net Width
84.5 mm
Product Net Height
84.5 mm
Product Net Depth / Length
25 mm
Product Net Weight
0.1 kg
RoHS Information
Environmental Declaration Thermokon
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
ETIM 9
EC004240 - Sensor (HVAC)
