2CQG505114R2021
Part Number: 2CQG505114R2021
Product Information
Extended Description

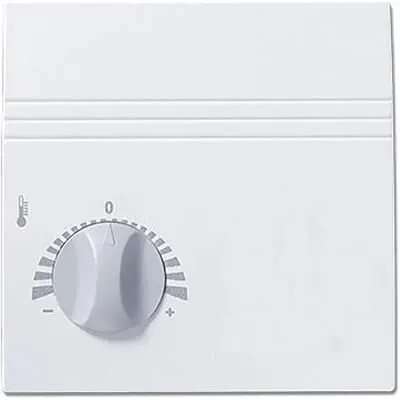

2CQG505114R2021 ABB: NTC10k, -35...+70°C, Housing: ABS, pure white (RAL9010), IP20, 84.5 x 84.5 x 25mm, Surface Mounting, Potentiometer 5 kΩ, 3-wire conductor (-,0,+).
Ambient Air Temperature
-35 ... 70 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet (.PDF) [EN] WRF04P
Application
Room
Connection Type
Wired
Cover Mounting Type
Screw
Sensor Type
NTC10K
Number of Batteries
0
Operating Humidity (RHamb)
85_P1$
Supply Voltage
DC 15 ... 24 V
Housing Color
White
Product Net Width
84.5 mm
Product Net Height
84.5 mm
Product Net Depth / Length
25 mm
Product Net Weight
0.1 kg
RoHS Information
CE Declaration Thermokon NOVOS-3
RoHS Status
Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE Declaration Thermokon NOVOS-3
ETIM 9
EC004240 - Sensor (HVAC)
