2CSH240575R2014
Part Number: 2CSH240575R2014
Product Information
Extended Description

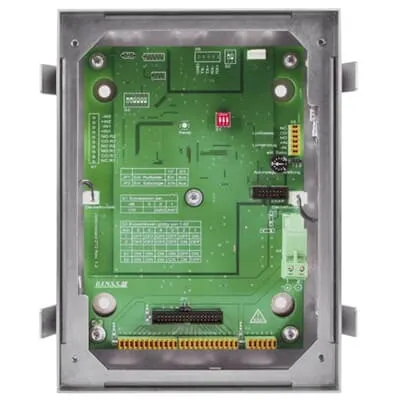

2CSH240575R2014 ABB: Flush-mounting box for Room Terminal ZT2
Vandalism-proof installation box for the room terminal ZT2. Design including rubber seal for IP 54 protection. Installation flush plaster and with special screws for protection against sabotage. Equipped with cable inlets for the required wiring.
Designed with connectable screw terminals for power supply for a line cross-section of up to 2 x 2.5 mm 2 Cu wire with end sleeves. Separately shielded supply to components (e.g. sensor button) in the detention room using connectable miniature terminals.
Number of Batteries
0
Application Function
Hospitality
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
2.3 kg
