2CSK1116CH
Part Number: 2CSK1116CH
Product Information
Extended Description

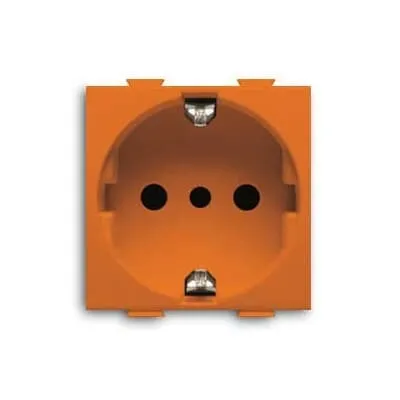

2CSK1116CH ABB: 2P+E socket outlets, 16A - 250V~, P30 type, ORANGE
Instructions and Manuals
2CSC600290D0201
Mounting Type
Flush Mounted
Type of Fastening
Snapper Mounting
Degree of Protection
IP20
Data Sheet, Technical Information
2CSC600290D0201
Number of Poles
2P
Number of Phases
0
Number of Active Pin Terminals
3
Number of Gangs
1
Connection Type
Screw
Socket Outlet Type
Power Socket Outlets - Italian P30 acc. to CEI 23-50
Illumination
Non-illuminated
Short-Circuit Current Rating (SCCR)
16 mA
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50...60 Hz
Power Supply Type
Supplementary
Design Range
Chiara
Surface Finishing
Basic
Material
Thermoplastic | Plastic
Legend
Without imprint
Label Space Provided
No
Color
Orange
Width in Number of Modular Spacings
2
Product Net Width
44 mm
Product Net Height
45 mm
Product Net Depth / Length
40 mm
Product Net Weight
0.004 kg
Built-In Depth (t2)
36 mm
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
