2CSK1127CH
Part Number: 2CSK1127CH
Product Information
Extended Description

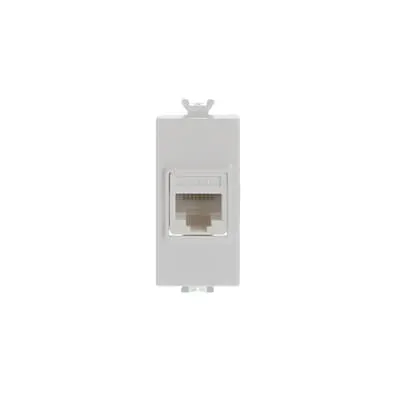

2CSK1127CH ABB: Chiara, ,RJ45 connector, Cat.6, UTP (unshielded)
Instructions and Manuals
2CSC600290D0201
Mounting Type
Clip
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Data Sheet, Technical Information
2CSC600290D0201
Communication Connector Type
RJ45 8(8)
Connection Type
LSA
Socket Outlet Type
Data Socket Outlets - Network RJ45
Outlet Orientation
Straight
Illumination
Non-illuminated
Design Range
Chiara
Surface Finishing
Basic
Material
Plastic
RAL Number
RAL 9003 - Signal White
Color
White
Width in Number of Modular Spacings
1
Product Net Width
25 mm
Product Net Height
45 mm
Product Net Depth / Length
33 mm
Product Net Weight
0 kg
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC001264 - Data communication connection box copper (twisted pair)
